Description
Engineered for demanding power transmission, our Split-Taper bushings provide superior holding power and true-concentric shaft locking under severe operating conditions. The double-split barrel contracts uniformly around the shaft as cap screws draw the bushing into the mating hub, while an integrated barrel key provides positive mechanical drive to eliminate slippage. Featuring a solid flanged collar with built-in jack-screw holes, they ensure fast, damage-free removal during maintenance cycles. Fabricated with precision-machined keyways, these rugged steel bushings deliver dependable stability and shock-load resistance for industrial conveyors, agricultural machinery, and heavy processing drives.
• Split Taper Bushing Drawing PDF

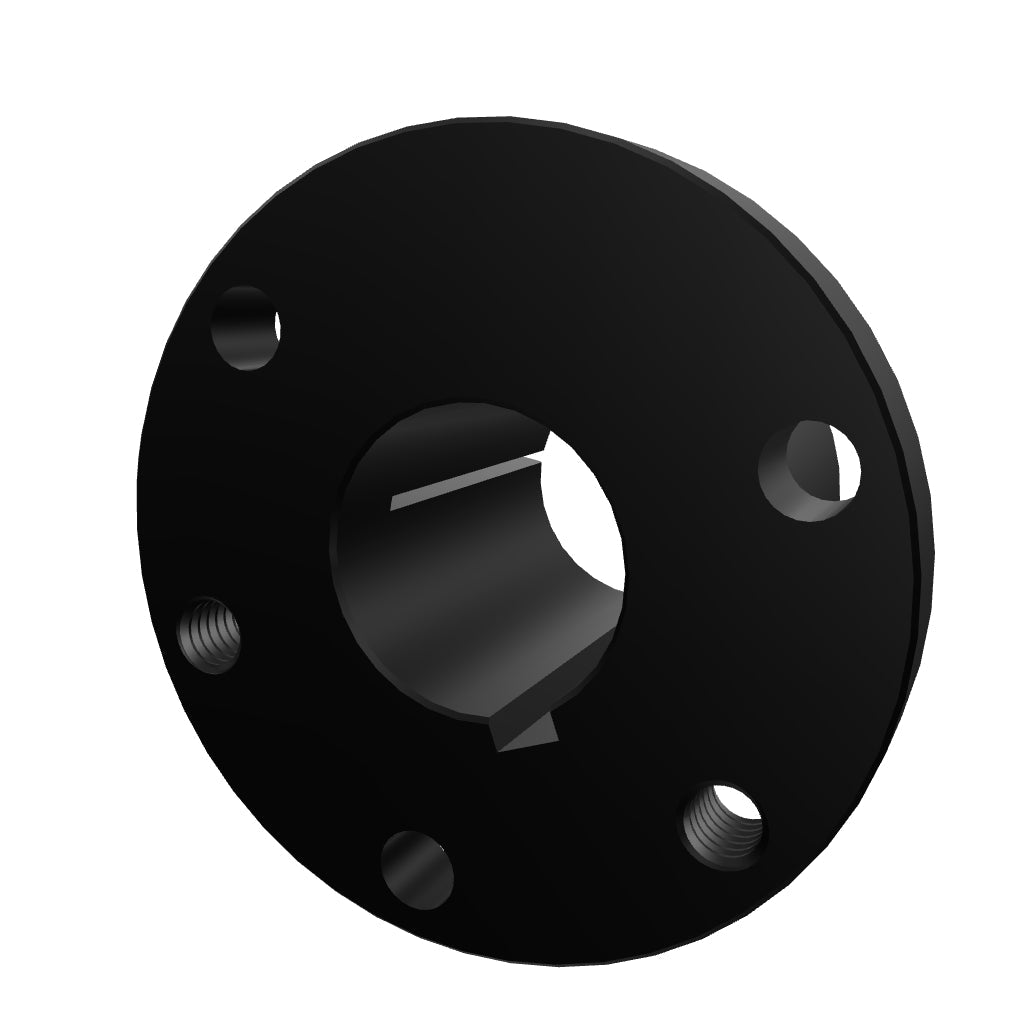

P1-1-1/8 Split Taper Bushing, 1-1/8" Bore
Details & Specifications
- Part No: QP1112
- PLI Bushing No.: P1
- Bore: 1.125"
- Dimensions L: 1.938"
- Dimensions U: 0.406"
- Dimensions T: 1.531"
- Dimensions D Large End: 1.937"
- Dimensions D Small End: 1.855"
- Dimensions H: 3"
- Dimensions V: 2.438"
- Dimensions W: 0.375"
- Dimensions X: 1.313"
- Dimensions Y: 0.219"
- Dimensions R: 0.219"
- Dimensions S: 0.25"
- Capscrews NO.: 3
- Capscrews SIZE (Inch): 5/16 x 1
- Average Weight Lbs.: 1,3
All bushings are either Steel, or Ductile Iron
For any information about products, please contact us.
*Photos for reference purposes only.
