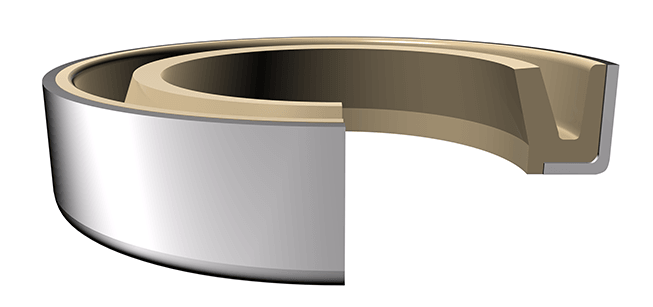

Product Details : Pin Wiper (WS) 45mm x 55mm x 4.5mm - Polyurethane/Steel
-
Part No: W045055045WS
-
Product Category: Rod Wipers
-
Product Type: Pin Wiper
-
Profile: WS
-
Material(s): Polyurethane/Steel
-
Material Code: AU/STEEL
-
Temperature Range: -40°F to +212°F (-40°C to +100°C)
-
Surface Speed: < 3.3 ft/s (1 m/s)
-
System Of Measurement: Metric
-
Rod Diameter: 45mm
-

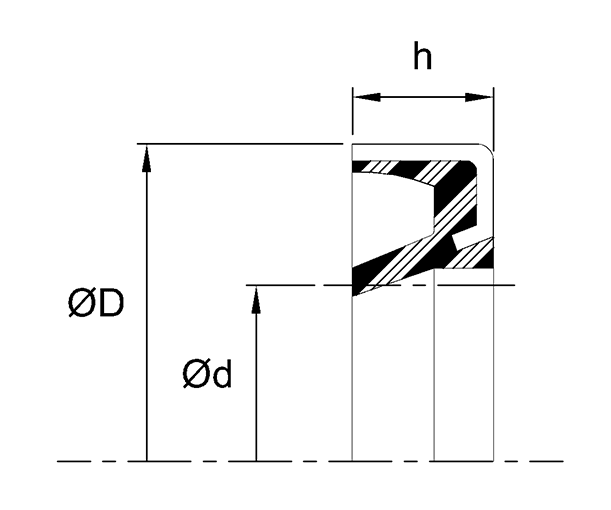

Dimensions: 45mm x 55mm x 4.5mm
-
Nominal I.D. (d): 45mm
-
Nominal O.D. (D): 55mm
-
Nominal Height (h): 4.5mm
-
Nominal Cross Section: 5mm
-
Details:
•Used mainly to protect the pins that anchor hydraulic cylinders to articulated equipment
•Single shell, polyurethane lip wiper ring
For any information about products, please contact us.
*Photos for reference purposes only.
