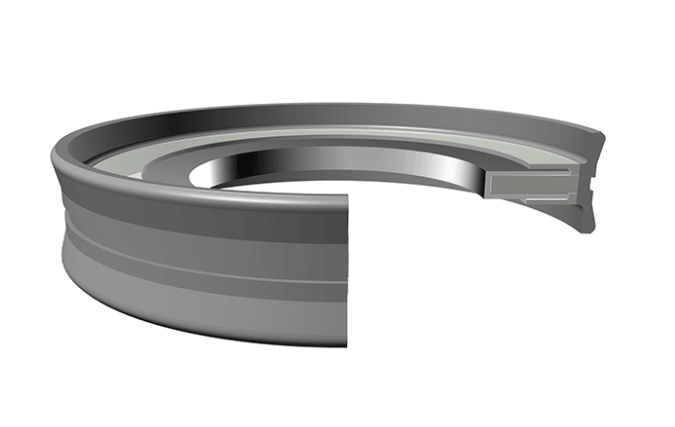

Product Details : Piston Cup (P1B) 63mm x 12mm x 22mm - Nitrile/Steel
-
Part No: P063012220P1B
-
Product Category: Piston Seals
-
Product Type: Piston Cup
-
Profile: P1B
-
Material(s): Nitrile/Steel
-
Material Code: NBR/Steel
-
Temperature Range: -22°F to +212°F (-30°C to +100°C)
-
Pressure Range: ≤ 174 PSI (≤ 12 Bar)
-
Surface Speed: < 1.6 ft/s (0.5 m/s)
-
System Of Measurement: Metric
-
Bore Diameter: 63mm
-
Dimensions: 63mm x 12mm x 22mm
-
Nominal I.D. (d): 12mm
-
Nominal O.D. (D): 63mm
-
Nominal Overall Height (H): 22mm
-
Nominal Height (H): 5mm
-
Details:
•Complete pneumatic piston with a double cup seal and a vulcanized metal disc support
For any information about products, please contact us.
*Photos for reference purposes only.
