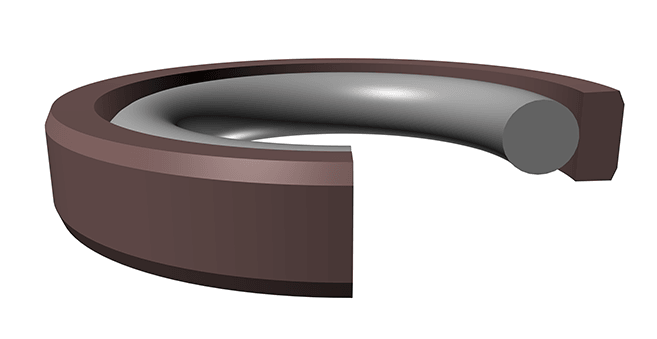

Piston Seal (P2B) 125mm x 109.5mm x 6.05mm - Teflon/Nitrile

Product Details : Piston Seal (P2B) 125mm x 109.5mm x 6.05mm - Teflon/Nitrile

• Part No: P125109063P2B
• Product Category: Piston Seals
• Product Type: Piston Seal
• Profile: P2B
• No. Of Pieces: 2 PCS
• Material(s): Teflon/Nitrile
• Material Code: PTFE/NBR
• Temperature Range: -30°F to +230°F (-34°C to +110°C)
• Pressure Range: ≤ 5800 PSI (≤ 400 Bar)
• Surface Speed: < 12 ft/s (3.7 m/s)
• System Of Measurement: Metric
• Bore Diameter: 125mm
• Dimensions: 125mm x 109.5mm x 6.05mm
• Nominal I.D. (d): 109.5mm
• Nominal O.D. (D): 125mm
• Nominal Height (H): 6.05mm
• Nominal Cross Section (S): 3.5mm
• Details:
  •2 PCS
  •Two-part sealing unit combining a low-friction teflon-based dynamic sealing element and an elastomeric loader ring insuring a fully energized device for both low and high pressure applications

For any information about products, please contact us.

*Photos for reference purposes only.
