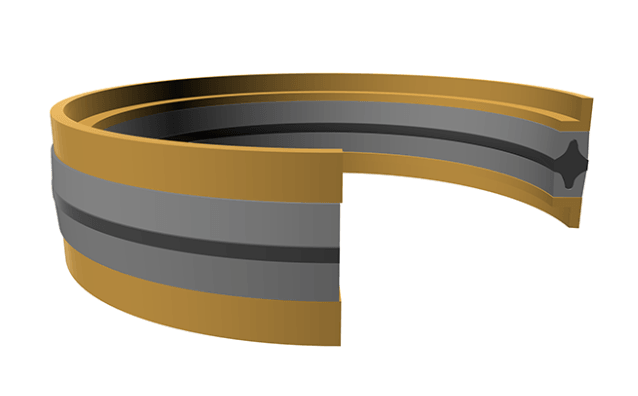

Piston Seal (P3C) 2.250" x 1.625" x 1.437" - NEOFAB/POM

Product Details : Piston Seal (P3C) 2.250" x 1.625" x 1.437" - NEOFAB/POM

• Part No: P3C-02250-1/58
• Product Category: Piston Seals
• Product Type: Piston Seal
• Profile: P3C
• No. Of Pieces: 3 PCS
• Material(s): Neo-Fabric/Polyacetal
• Material Code: NEOFAB/POM
• Temperature Range: -22°F to +212°F (-30°C to +100°C)
• Pressure Range: ≤ 10000 PSI (≤ 689 Bar)
• Surface Speed: < 1.6 ft/s (0.5 m/s)
• System Of Measurement: Inch
• Bore Diameter: 2.250"
• Dimensions: 2.250" x 1.625" x 1.437"
• Nominal I.D. (d): 1.625"
• Nominal O.D. (D): 2.250"
• Nominal Overall Height (H): 1.437"
• Nominal Height (H): 0.937"
• Nominal Cross Section: 0.312"
• Details:
  •3 PCS
  •Double-acting piston seal used in combination with L-shaped bearing rings to give a very robust heavy duty seal assembly requiring split pistons.

For any information about products, please contact us.

*Photos for reference purposes only.
