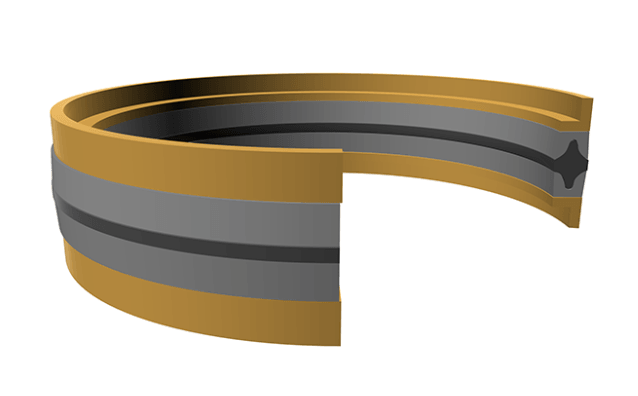

Product Details : Piston Seals (P3C) 200mm x 180mm x 49.9mm - Neo-Fabric/Polyacetal
-
Part No: P200180315P3C
-
Product Category: Piston Seals
-
Product Type: Piston Seal
-
Profile: P3C
-
No. Of Pieces: 3 PCS
-
Material(s): Neo-Fabric/Polyacetal
-
Material Code: NEOFAB/POM
-
Temperature Range: -22°F to +212°F (-30°C to +100°C)
-
Pressure Range: ≤ 6000 PSI (≤ 415 Bar)
-
Surface Speed: < 1.6 ft/s (0.5 m/s)
-
System Of Measurement: Metric
-
Bore Diameter: 200mm
-
Dimensions: 200mm x 180mm x 49.9mm
-
Nominal I.D. (d): 180mm
-
Nominal O.D. (D): 200mm
-
Nominal Overall Height (H): 49.9mm
-
Nominal Height (h): 31.5mm
-
Nominal Cross Section: 10mm
-
Details:
•3 PCS
•Double-acting piston seal, heavy-duty assembly used for split pistons
For any information about products, please contact us.
*Photos for reference purposes only.
