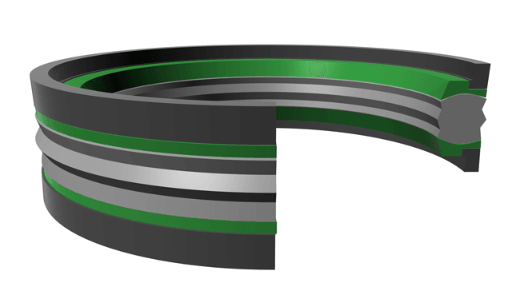

Product Details : Piston Seals (P5B) 2.000" x 1.625" x 0.717" - NEOFAB/PA/POM
-
Part No: P5B-02000
-
Product Category: Piston Seal
-
Product Type: Piston Seals
-
Profile: P5B
-
No. Of Pieces: 5 PCS
-
Material(s): Neo-Fabric/Polyamide/Polyacetal
-
Material Code: NEOFAB/PA/POM
-
Temperature Range: -40°F to +230°F (-40°C to +110°C)
-
Pressure Range: ≤ 5800 PSI (≤ 400 Bar)
-
Surface Speed: < 1.5 ft/s (0.5 m/s)
-
System Of Measurement: Inch
-
Bore Diameter: 2.000"
-
Dimensions: 2.000" x 1.625" x 0.717"
-
Nominal I.D. (d): 1.625"
-
Nominal O.D. (D): 2.000"
-
Nominal Overall Height (H): 0.717"
-
Nominal Height (H): 0.425"
-
Nominal Cross Section: 0.187"
-
Details:
•5 PCS
•Designed for easy installation on one-piece pistons
For any information about products, please contact us.
*Photos for reference purposes only.
