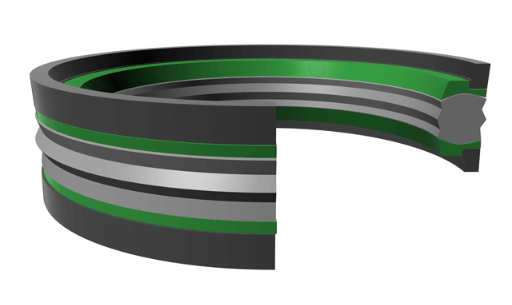

Piston Seals (P5B) 3.000" x 2.250" x 1.437" - NEOFAB/PA/POM

Product Details : Piston Seals (P5B) 3.000" x 2.250" x 1.437" - NEOFAB/PA/POM

• Part No: P5B-03000-2
• Product Category: Piston Seal
• Product Type: Piston Seals
• Profile: P5B
• No. Of Pieces: 5 PCS
• Material(s): Neo-Fabric/Polyamide/Polyacetal
• Material Code: NEOFAB/PA/POM
• Temperature Range: -40°F to +230°F (-40°C to +110°C)
• Pressure Range: ≤ 5800 PSI (≤ 400 Bar)
• Surface Speed: < 1.5 ft/s (0.5 m/s)
• System Of Measurement: Inch
• Bore Diameter: 3.000"
• Dimensions: 3.000" x 2.250" x 1.437"
• Nominal I.D. (d): 2.250"
• Nominal O.D. (D): 3.000"
• Nominal Overall Height (H): 1.437"
• Nominal Height (H): 0.937"
• Nominal Cross Section: 0.375"
• Details:
  •5 PCS
  •Designed for easy installation on one-piece pistons

For any information about products, please contact us.

*Photos for reference purposes only.
