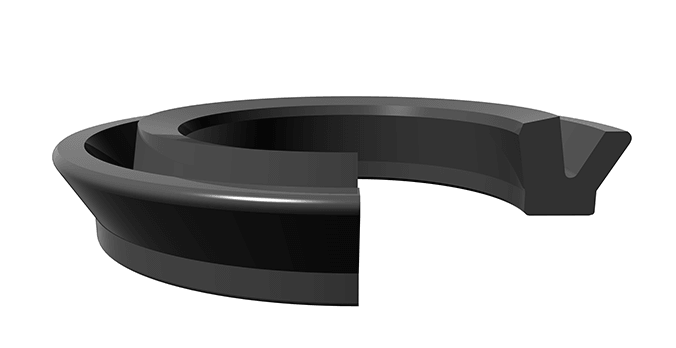

Product Details : Piston U-Seal (E4) 3.250" x 2.812" x 0.218" - Nitroxile
-
Part No: E40702812/4274
-
Product Category: Piston Seals
-
Product Type: Piston U-Seal
-
Profile: E4
-
Material(s): Nitroxile
-
Durometer: 83A
-
Temperature Range: -10°F to +250°F (-23°C to +121°C)
-
Pressure Range: ≤ 250 PSI (≤ 17 Bar)
-
Surface Speed: < 3 ft/s (0.9 m/s)
-
System Of Measurement: Inch
-
Bore Diameter: 3.250"
-
Dimensions: 3.250" x 2.812" x 0.218"
-

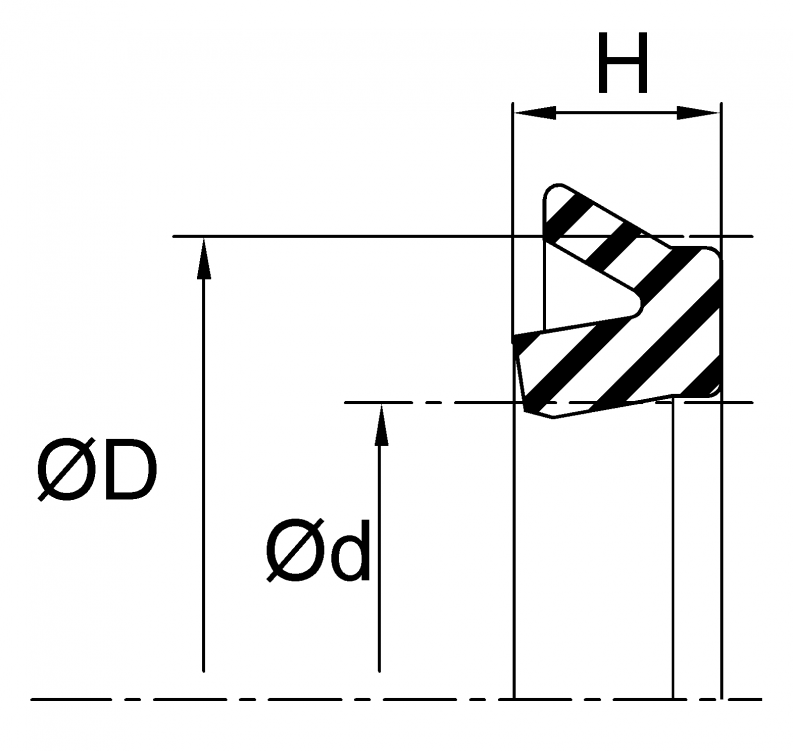

Nominal I.D. (d): 2.812"
-
Nominal O.D. (D): 3.250"
-
Nominal Height (H): 0.218"
-
Nominal Cross Section: 0.219"
-
Details:
•Non-symmetrical, designed to seal both lubricated and non-lubricated air
For any information about products, please contact us.
*Photos for reference purposes only.
