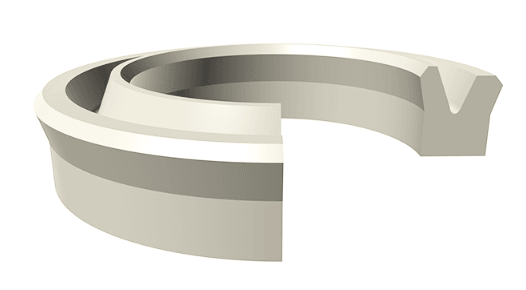

Product Details : Piston U-Seal (UP) 1.750" x 1.125" x 0.437" - Polyurethane
-
Part No: UP31201125-437/9250
-
Product Category: Piston Seals
-
Product Type: Piston U-Seal
-
Profile: UP
-
Material(s): Polyurethane
-
Material Code: AU
-
Durometer: 92A
-
Temperature Range: -40°F to +230°F (-40°C to +110°C)
-
Pressure Range: ≤ 6000 PSI (≤ 414 Bar)
-
Surface Speed: < 1.6 ft/s (0.5 m/s)
-
System Of Measurement: Inch
-
Bore Diameter: 1.750"
-

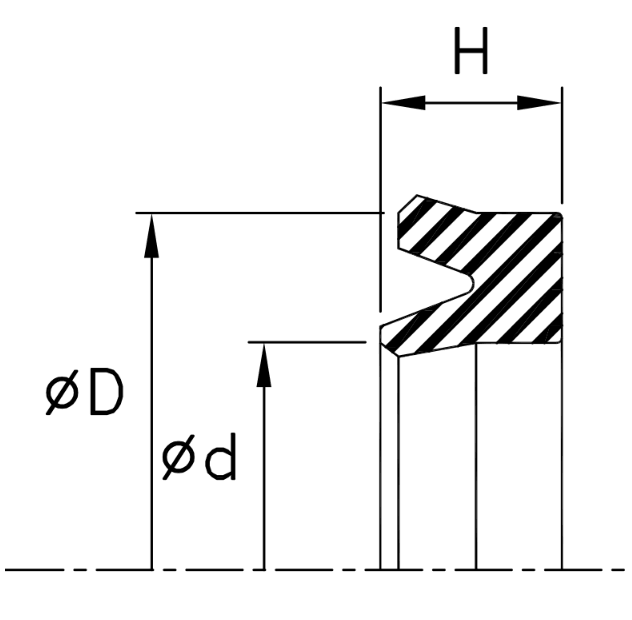

Dimensions: 1.750" x 1.125" x 0.437"
-
Nominal I.D. (d): 1.125"
-
Nominal O.D. (D): 1.750"
-
Nominal Height (H): 0.437"
-
Nominal Cross Section: 0.312"
-
Details:
•Non-symmetrical lip seal of single-acting design
For any information about products, please contact us.
*Photos for reference purposes only.
