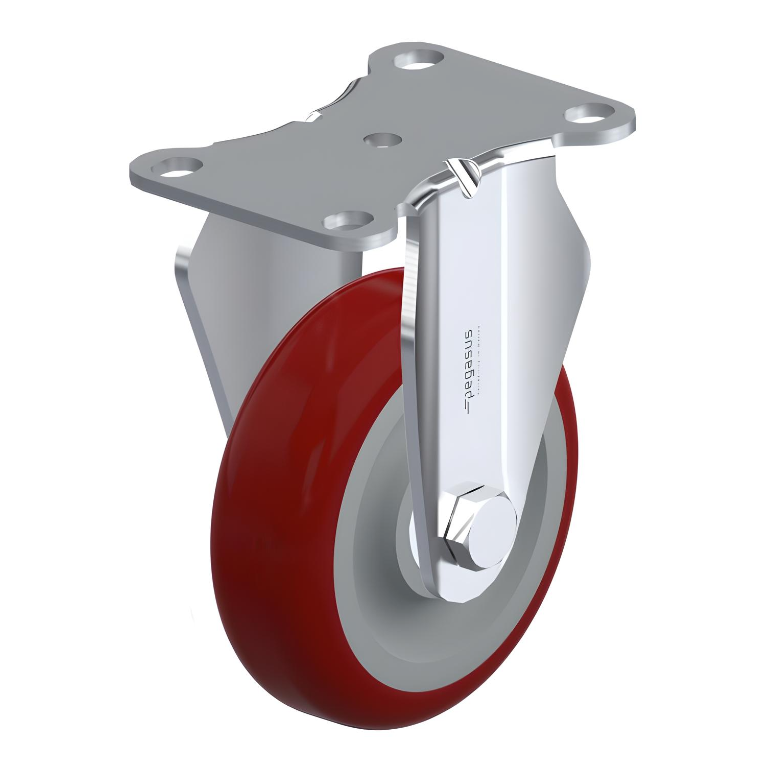

Product Details : Polyurethane Maroon Caster 3" x 1-1/4" Rigid 300 lbs Precision Ball Bearing P12 Series
-
Product Type: Light-Medium Duty Casters
-
Series: P12 Series
-
Wheel Material: Polyurethane Maroon
-
Caster Type: Rigid
-
Brake Options: No Brake
-
Mount Type: Top Plate
-
Plate Material: Zinc Finish
-
Wheel Diameter: 3"
-
Wheel Width: 1-1/4"
-
Tread / Tire Material(s): Maroon Thermoplastic Polyurethane Tread
-
Wheel Core / Rim Material(s): Beige Polypropylene
-

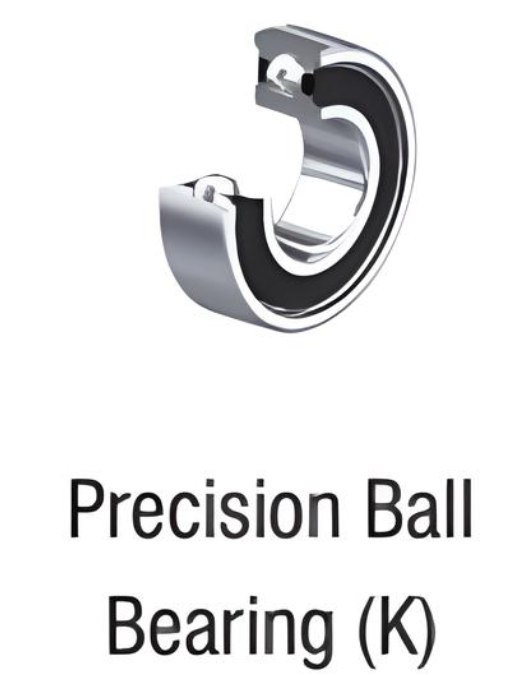

Bearing Type: Precision Ball Bearing
-
Load Capacity (lbs): 300 lbs
-
Total Height: 4-3/16"
-
Top Plate No.: 12
-
Plate Size: 2-1/2" x 3-5/8"
-
Bolt Hole Spacing: 1-3/4" x 2-13/16" to 3-1/16"
-
Bolt Hole Size: 5/16"
-
Where Used:
• Store fixtures
• Utility carts
• Institutional equipment
• Hospitality carts
-
Features:
• Hardened double ball raceways with Ø 1/2" kingpin
• Zinc plated finish resists rust and corrosion
• 3/8" axle and locknut
• Multiple wheel bearing options available
• Rig leg spacing: 1-9/16"
• Rig and leg assembly designed for maximum durability
• Hardness: 55–65 Shore D
• Temperature range: -45° to 180° F
-
Wheel Treads: Thermoplastic polyurethane on polypropylene cores add the benefit of a softer tread for quiet operation
-
Certified Quality Management System: ISO 9001
-
Warranty: 3 Year
