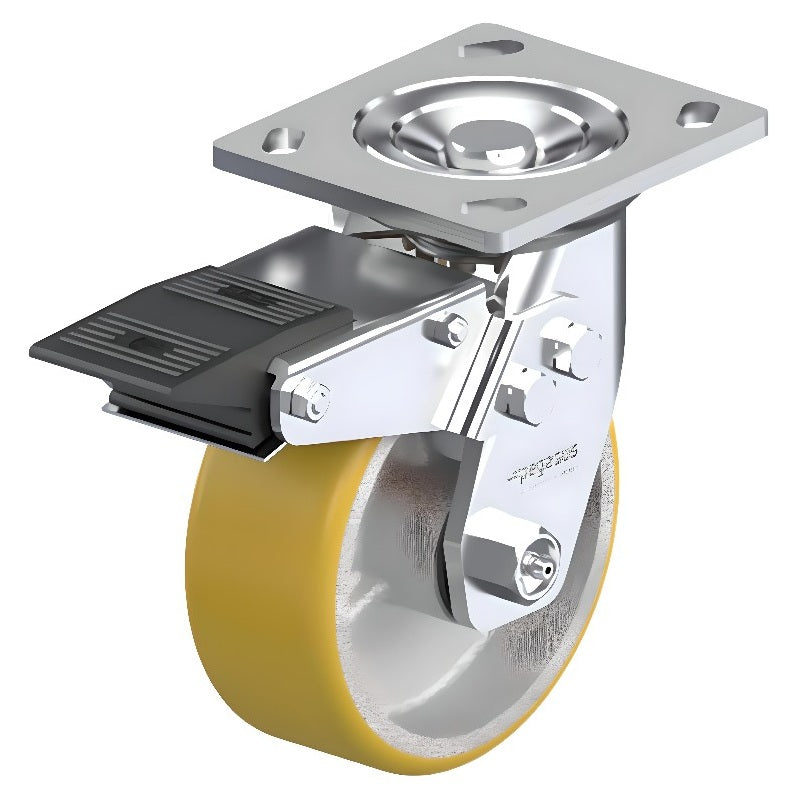

Product Details : Polyurethane Yellow Caster 8" x 2" Swivel Total Lock Brake (TB) 1250 lbs Roller Bearing P21 Series
-
Product Type: Medium Duty Industrial Casters
-
Series: P21 Series
-
Wheel Material: Polyurethane Yellow
-
Caster Type: Swivel
-
Brake Options: Total Lock Brake (TB)
-
Mount Type: Top Plate
-
Plate Material: Zinc Finish
-
Wheel Diameter: 8"
-
Wheel Width: 2"
-
Tread / Tire Material(s): Yellow Polyurethane Tread
-
Wheel Core / Rim Material(s): Silver Cast Iron
-

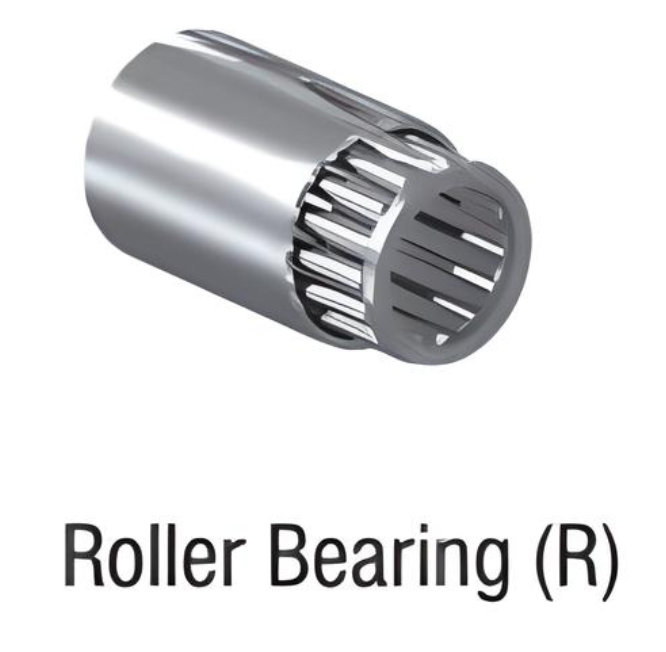

Bearing Type: Roller Bearing
-
Load Capacity (lbs): 1250 lbs
-
Total Height: 9-1/2"
-
Swivel Lead: 2-1/4"
-

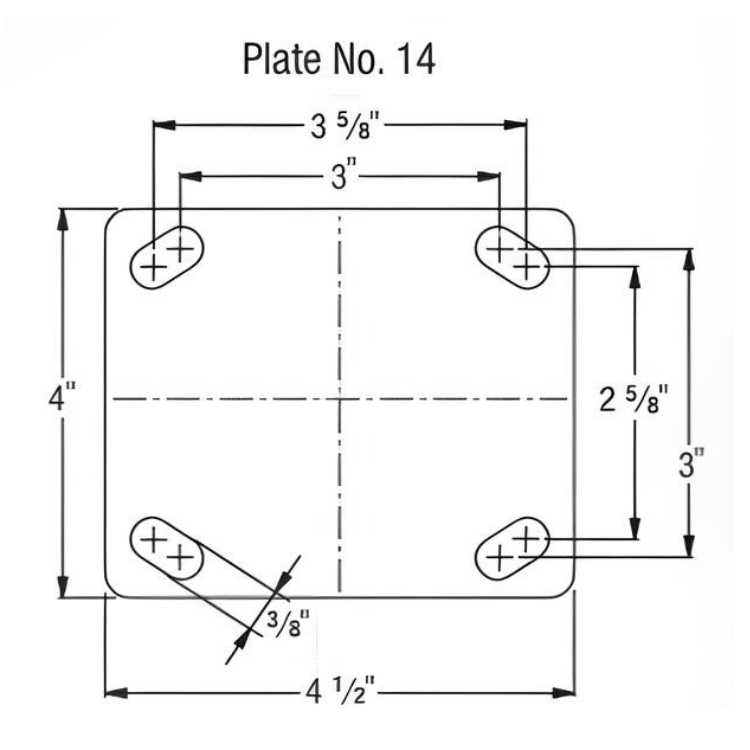

Top Plate No.: 14
-
Plate Size: 4" x 4-1/2"
-
Bolt Hole Spacing: 2-5/8" x 3-5/8" to 3" x 3"
-
Bolt Hole Size: 3/8"
-
Where Used:
• Platform trucks
• Industrial carts
• Work tables
• Dollies
• Material handling
• Industrial equipment
-
Features:
• Hardened double ball raceways with Ø 5/8" kingpin
• Zinc plated finish resists rust and corrosion
• 1/2" axle and locknut
• Strong welded construction
• Multiple wheel bearing and braking options available
• Grease fitting standard on raceway and axle
• Rig leg spacing: 2-7/16"
• Hardness: 85–95 Shore A
• Temperature range: -40° to 180° F
-
Wheel Treads: Polyurethane on cast iron cores add the benefit of a softer tread for quiet operation and a heavy duty core for added capacity
-
Certified Quality Management System: ISO 9001
-
Warranty: 3 Year
For any information about products, please contact us.
*Photos for reference purposes only.
