Product Details : Push in to Connect Tube Splicer 3/8"
-
Part No: P7.3/8
-
Product Category: Push to Connect
-
Format: Standard
-
Style: Tube Splicer
-
Type: Tube Fitting
-
O-Ring: No O-Ring
-
Material(s): Polymer
-
Fluid Type: Air (no other gases or liquids)
-
Connection 1: Push-In Sleeve 3/8"
-
Connection 2: Push-In Sleeve 3/8"
-

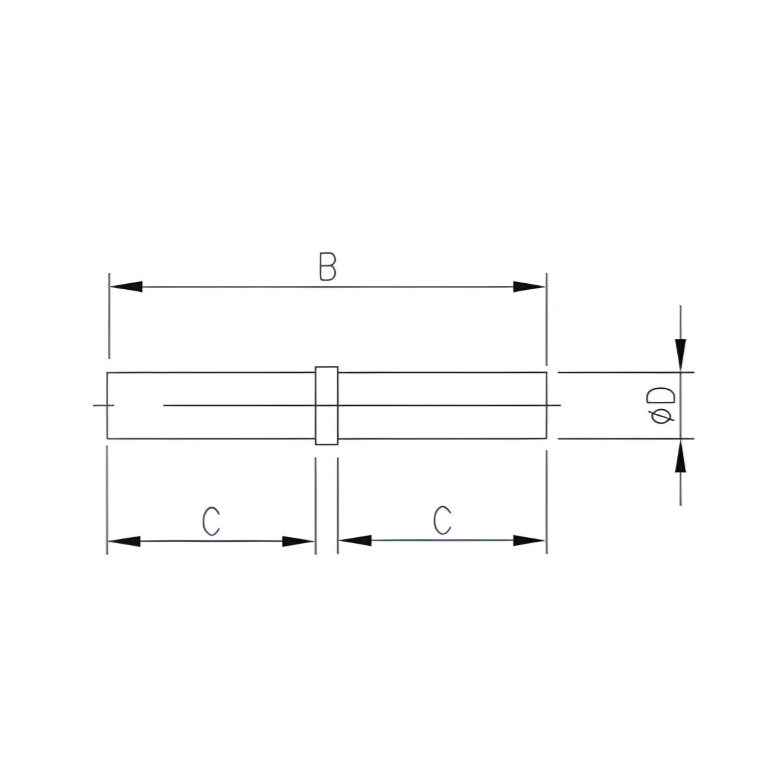

øD: 3/8"
-
B: 50mm
-
C: 21mm
-
Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
-
Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
-
Temperature Range: 32-176°F / 0-80°C
-
Applicable Tube Material: Polyurethane and Nylon
