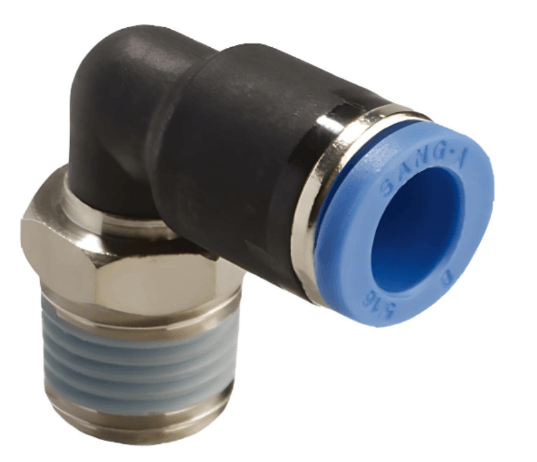

Product Details : Push to Connect 90 Elbow Fitting 10mm Tube x 3/8" BSPT (R) Male
-
Part No: P4.10.3/8
-
Product Category: Push to Connect
-
Format: Standard
-
Style: Elbow Union
-
Number Of Exits: 1
-
Type: Male Fitting
-
O-Ring: No O-Ring
-
Material(s): Polymer
-
Fluid Type: Air (no other gases or liquids)
-
Connection 1: Push to Connect 10mm
-
Connection 2: 3/8" BSPT (R)
-
øD: 10mm
-
R: R3/8"
-
øP: 16.3mm
-
A: 12mm
-
B: 26.1mm
-
C: 19.4mm
-
E: 25mm
-
F: 5mm
-
H: 17mm
-
X: 16mm
-
Y: 18.5mm
-
Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
-
Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
-
Temperature Range: 32-176°F / 0-80°C
-
Applicable Tube Material: Polyurethane and Nylon
