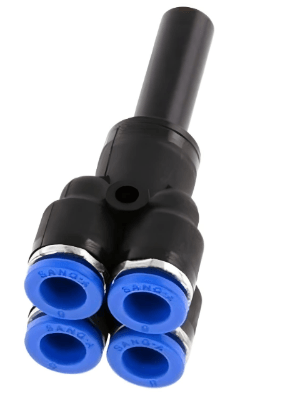

Product Details : Push to Connect Double Wye Union Reducer 4mm Tube x 6mm Tube Plug in
-
Part No: P30.06.04
-
Product Category: Push to Connect
-
Format: Standard
-
Style: Wye Union
-
Number Of Exits: 4
-
Type: Tube Fitting
-
O-Ring: No O-Ring
-
Material(s): Polymer
-
Fluid Type: Air (no other gases or liquids)
-
Connection 1: Push to Connect 4mm
-
Connection 2: Push-In Sleeve 6mm
-

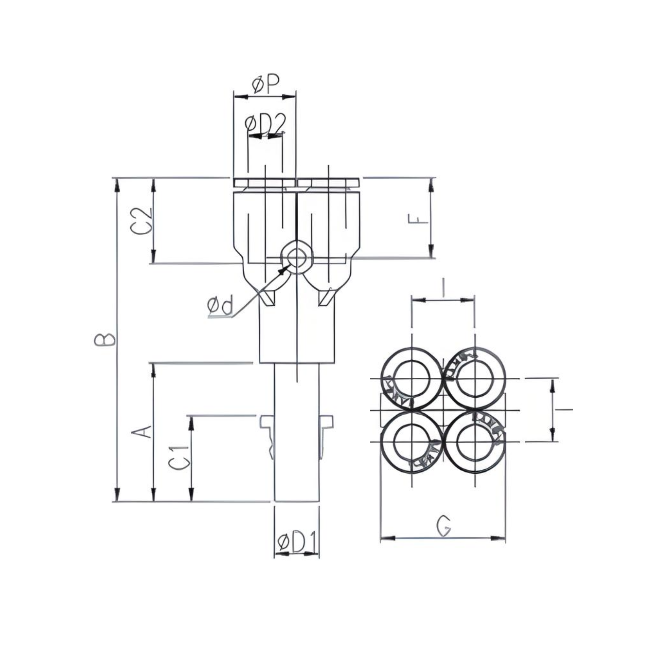

øD1: 6mm
-
øD2: 4mm
-
øP: 9mm
-
A: 23mm
-
B: 53mm
-
C1: 15.5mm
-
C2: 14.5mm
-
F: 13.1mm
-
G: 18.2mm
-
I: 9.2mm
-
ød: 3.2mm
-
Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
-
Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
-
Temperature Range: 32-176°F / 0-80°C
-
Applicable Tube Material: Polyurethane and Nylon
