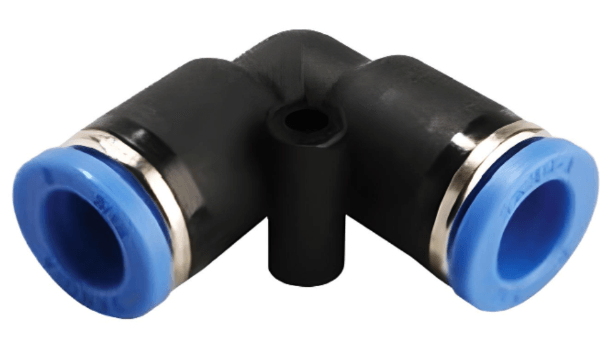

Push to Connect Elbow Union 16mm Tube x 16mm Tube

Product Details : Push to Connect Elbow Union 16mm Tube x 16mm Tube

• Part No: P4.16
• Product Category: Push to Connect
• Format: Standard
• Style: Elbow Union
• Number Of Exits: 1
• Type: Tube Fitting
• O-Ring: No O-Ring
• Material(s): Polymer
• Fluid Type: Air (no other gases or liquids)
• Connection 1: Push to Connect 16mm
• Connection 2: Push to Connect 16mm
• øD: 16mm
• øP: 25.6mm
• B: 34mm
• C: 25mm
• F: 15mm
• ød: 4.2mm
• X: 24mm
• Y: 27mm
• Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
• Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
• Temperature Range: 32-176°F / 0-80°C
• Applicable Tube Material: Polyurethane and Nylon

For any information about products, please contact us.

*Photos for reference purposes only.
