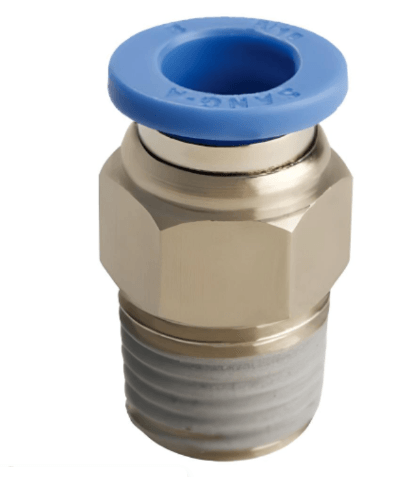

Push to Connect Straight Fitting 1/2" Tube x 1/8" NPT Male

Product Details : Push to Connect Straight Fitting 1/2" Tube x 1/8" NPT Male

• Part No: P1.1/2.1/8
• Product Category: Push to Connect
• Format: Standard
• Style: Straight Union
• Number Of Exits: 1
• Type: Male Fitting
• O-Ring: No O-Ring
• Material(s): Nickel Plated Brass
• Fluid Type: Air (no other gases or liquids)
• Connection 1: Push to Connect 1/2"
• Connection 2: 1/8" NPT
• øD: 1/2"
• R: NPT1/8"
• A: 8mm
• B: 33.9mm
• C: 22.5mm
• H1: 7/8"
• H2: 3.97mm
• X: 21mm
• Y: 23mm
• Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
• Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
• Temperature Range: 32-176°F / 0-80°C
• Applicable Tube Material: Polyurethane and Nylon

For any information about products, please contact us.

*Photos for reference purposes only.
