Description

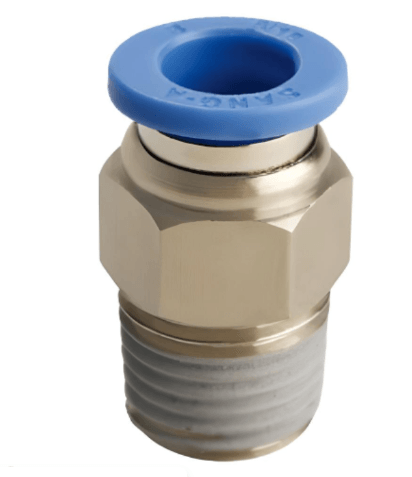

Product Details : Push to Connect Straight Fitting 3/16" Tube x 10-32 NPT Male
- Part No: P1.3/16.10-32
- Product Category: Push to Connect
- Format: Standard
- Style: Straight Union
- Number Of Exits: 1
- Type: Male Fitting
- O-Ring: No O-Ring
- Material(s): Nickel Plated Brass
- Fluid Type: Air (no other gases or liquids)
- Connection 1: Push to Connect 3/16"
- Connection 2: 10-32 NPT
- øD: 3/16"
- R: UNFC10-32
- A: 4mm
- B: 23.8mm
- C: 17mm
- H1: 7/16"
- H2: 2.38mm
- X: 11mm
- Y: 13mm
- Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
- Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
- Temperature Range: 32-176°F / 0-80°C
- Applicable Tube Material: Polyurethane and Nylon
For any information about products, please contact us.
*Photos for reference purposes only.
