Push to Connect Straight Fitting 4mm Tube x 1/4" BSPT (R) Female - Stainless

Product Details : Push to Connect Straight Fitting 4mm Tube x 1/4" BSPT (R) Female - Stainless

• Part No: P2.04.1/4.SS
• Product Category: Push to Connect
• Format: Standard
• Style: Straight Union
• Number Of Exits: 1
• Type: Female Fitting
• O-Ring: No O-Ring
• Material(s): Stainless Steel
• Fluid Type: Air (no other gases or liquids)
• Connection 1: Push to Connect 4mm
• Connection 2: 1/4" BSPT (R)
• øD: 4mm
• Rc: R1/4"
• øP: 8.8mm
• A: 12mm
• B: 27.4mm
• C: 14.5mm
• G: 14mm
• H: 17mm
• X: 8.6mm
• Y: 10.8mm
• Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
• Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
• Temperature Range: 32-176°F / 0-80°C
• Applicable Tube Material: Polyurethane and Nylon

For any information about products, please contact us.

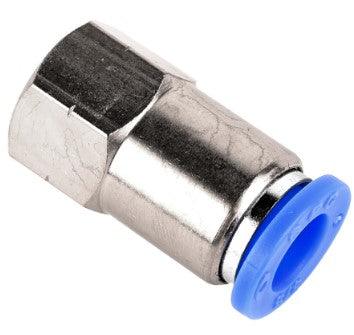

*Photos for reference purposes only.
