Description

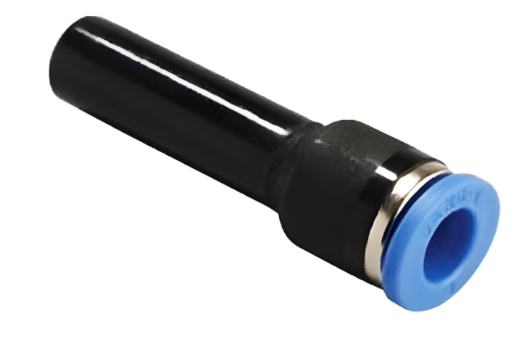

Product Details : Push to Connect Straight Plug in Reducer 4mm to 8mm Tube OD
- Part No: P8.08.04
- Product Category: Push to Connect
- Format: Standard
- Style: Straight Union
- Number Of Exits: 1
- Type: Tube Fitting
- O-Ring: No O-Ring
- Material(s): Polymer
- Fluid Type: Air (no other gases or liquids)
- Connection 1: Push to Connect 4mm
- Connection 2: Push-In Sleeve 8mm
- øD1: 8mm
- øD2: 4mm
- øP: 9mm
- B: 36.9mm
- C1: 17.8mm
- C2: 14.5mm
- E: 11.3mm
- X: 8.6mm
- Y: 11mm
- Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
- Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
- Temperature Range: 32-176°F / 0-80°C
- Applicable Tube Material: Polyurethane and Nylon
For any information about products, please contact us.
*Photos for reference purposes only.
