Description

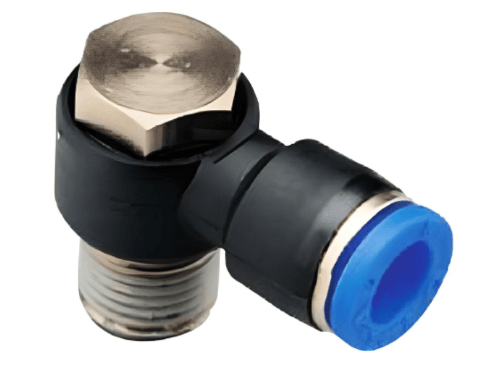

Product Details : Push to Connect Swivel Banjo 3/8" Tube x 1/4" NPT Male
- Part No: P15.3/8.1/4
- Product Category: Push to Connect
- Format: Standard
- Style: Banjo Union
- Number Of Exits: 1
- Type: Male Fitting
- O-Ring: No O-Ring
- Material(s): Polymer
- Fluid Type: Air (no other gases or liquids)
- Connection 1: Push to Connect 3/8"
- Connection 2: 1/4" NPT
- øD: 5/16"
- R: NPT3/8"
- øP: 14.4mm
- A: 12mm
- B: 15.5mm
- C: 18.5mm
- E: 28.6mm
- G: 5mm
- H: 19mm
- K: 22mm
- X: 14mm
- Y: 16mm
- Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
- Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
- Temperature Range: 32-176°F / 0-80°C
- Applicable Tube Material: Polyurethane and Nylon
For any information about products, please contact us.
*Photos for reference purposes only.
