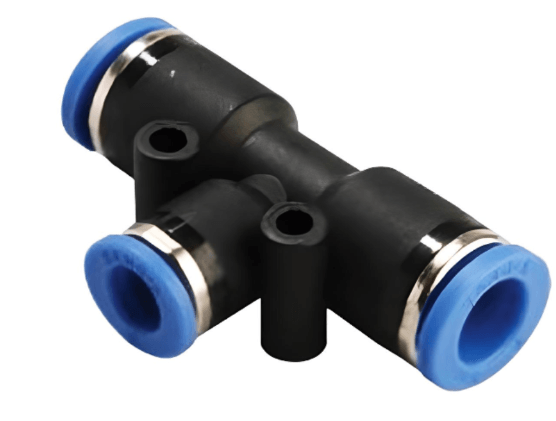

Product Details : Push to Connect Tee Union Reducer 3/8" Tube x 1/4" Tube
-
Part No: P5D.3/8.1/4
-
Product Category: Push to Connect
-
Format: Standard
-
Style: Tee Union
-
Number Of Exits: 2
-
Type: Tube Fitting
-
O-Ring: No O-Ring
-
Material(s): Polymer
-
Fluid Type: Air (no other gases or liquids)
-
Connection 1: Push to Connect 3/8"
-
Connection 2: Push to Connect 1/4"
-

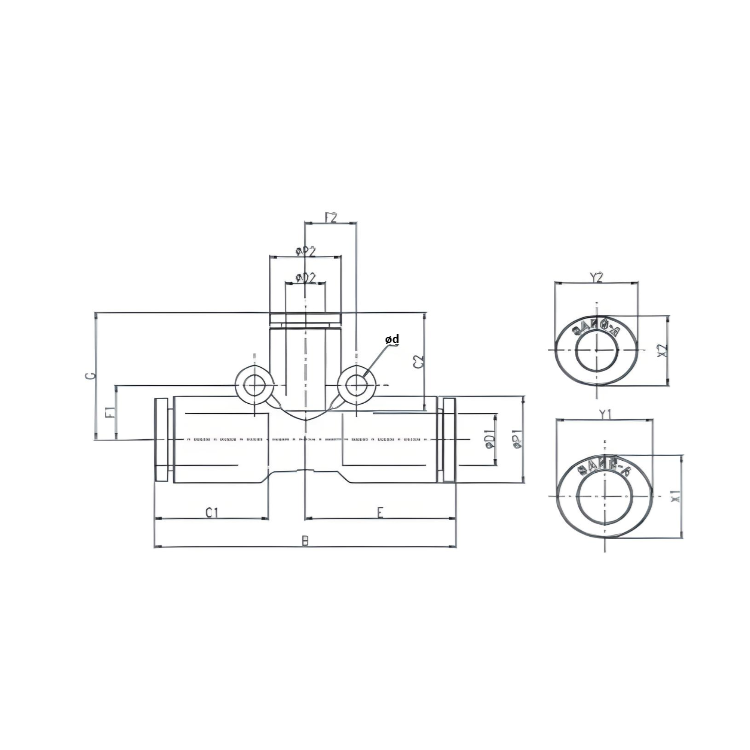

øD1: 3/8"
-
øD2: 1/4"
-
Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
-
Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
-
Temperature Range: 32-176°F / 0-80°C
-
Applicable Tube Material: Polyurethane and Nylon
For any information about products, please contact us.
*Photos for reference purposes only.
