Push to Connect Tube Plug 1/4"

Product Details : Push to Connect Tube Plug 1/4"

• Part No: P9.1/4
• Product Category: Push to Connect
• Format: Standard
• Style: Tube Plug
• Type: Tube Fitting
• O-Ring: No O-Ring
• Material(s): Polymer
• Fluid Type: Air (no other gases or liquids)
• Connection 1: Push-In Sleeve 1/4"

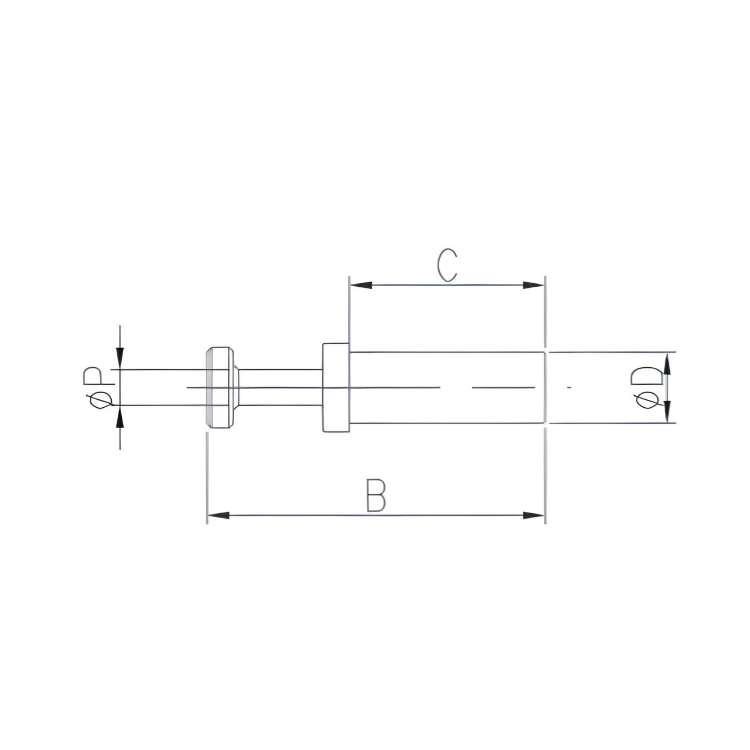

• øD: 1/4"
• øP: 3mm
• B: 34mm
• C: 20mm
• Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
• Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
• Temperature Range: 32-176°F / 0-80°C
• Applicable Tube Material: Polyurethane and Nylon

For any information about products, please contact us.

*Photos for reference purposes only.
