Description

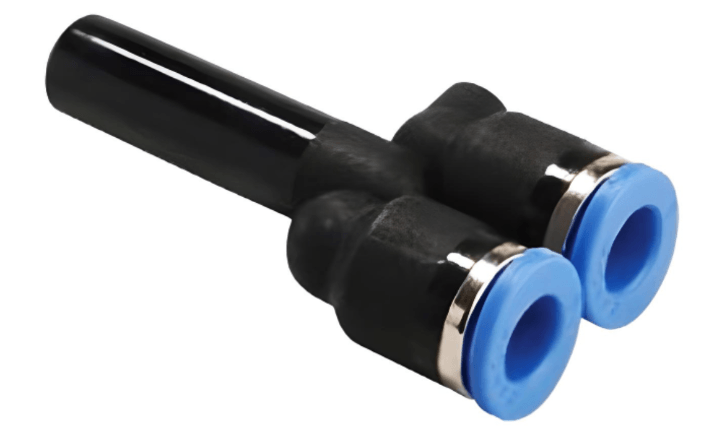

Product Details : Push to Connect Wye Union Reducer 4mm Tube x 6mm Tube Plug in
- Part No: P28.06.04
- Product Category: Push to Connect
- Format: Standard
- Style: Wye Union
- Number Of Exits: 2
- Type: Tube Fitting
- O-Ring: No O-Ring
- Material(s): Polymer
- Fluid Type: Air (no other gases or liquids)
- Connection 1: Push to Connect 4mm
- Connection 2: Push-In Sleeve 6mm

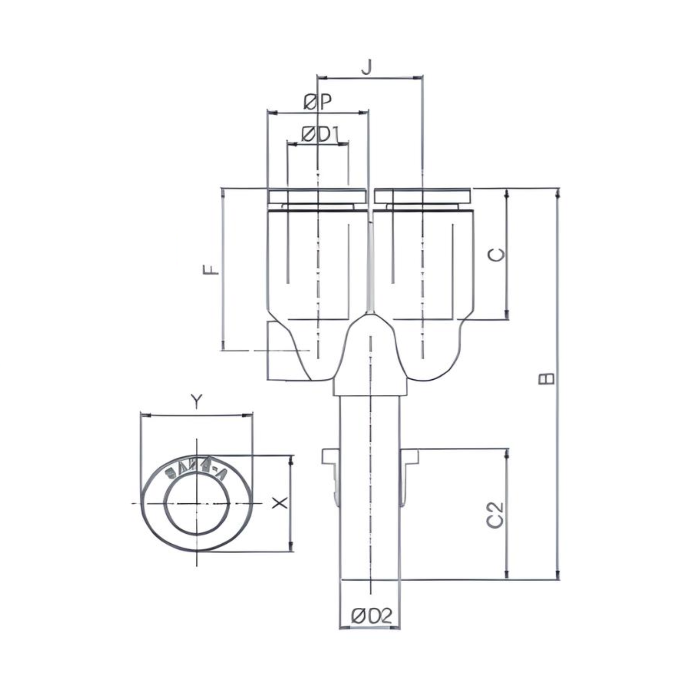

- øD1: 6mm
- øD2: 4mm
- øP: 9mm
- B: 42.8mm
- C1: 14.5mm
- C2: 14.5mm
- F: 16mm
- øJ: 9.3mm
- X: 8.6mm
- Y: 10.8mm
- Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
- Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
- Temperature Range: 32-176°F / 0-80°C
- Applicable Tube Material: Polyurethane and Nylon
For any information about products, please contact us.
*Photos for reference purposes only.
