Description

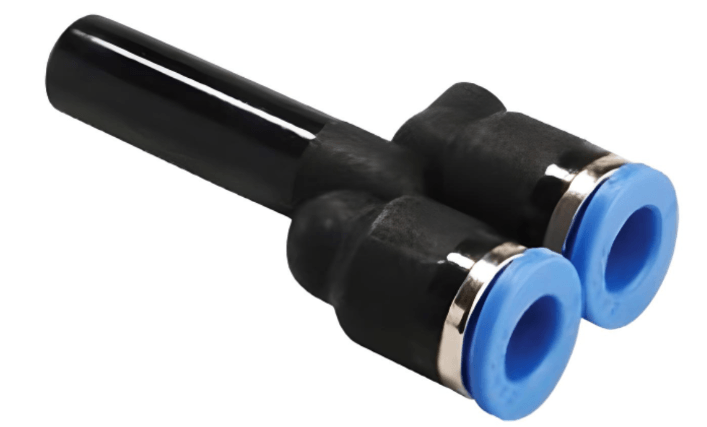

Product Details : Push to Connect Wye Union Reducer 6mm Tube x 8mm Tube Plug in
- Part No: P28.08.06
- Product Category: Push to Connect
- Format: Standard
- Style: Wye Union
- Number Of Exits: 2
- Type: Tube Fitting
- O-Ring: No O-Ring
- Material(s): Polymer
- Fluid Type: Air (no other gases or liquids)
- Connection 1: Push to Connect 6mm
- Connection 2: Push-In Sleeve 8mm

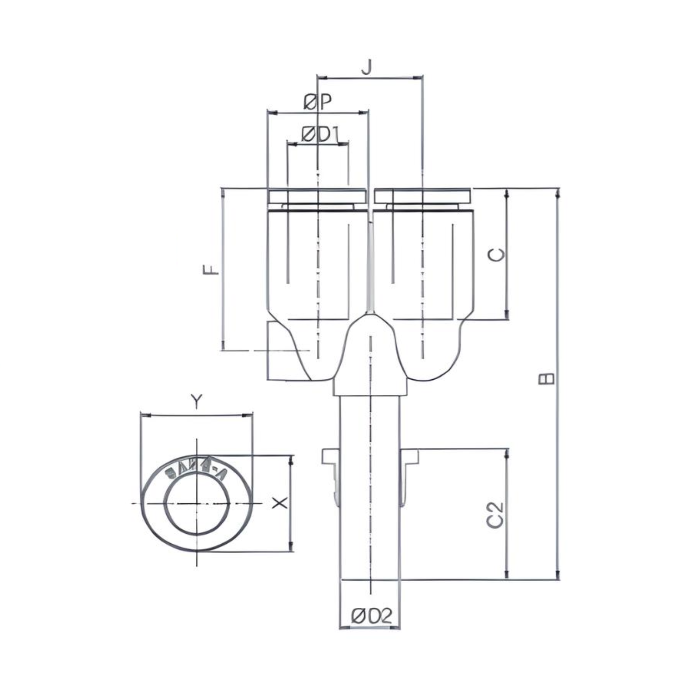

- øD1: 8mm
- øD2: 6mm
- øP: 11.2mm
- B: 45.5mm
- C1: 15.5mm
- C2: 15.5mm
- F: 17.2mm
- øJ: 11.4mm
- X: 11mm
- Y: 13mm
- Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
- Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
- Temperature Range: 32-176°F / 0-80°C
- Applicable Tube Material: Polyurethane and Nylon
For any information about products, please contact us.
*Photos for reference purposes only.
