Description

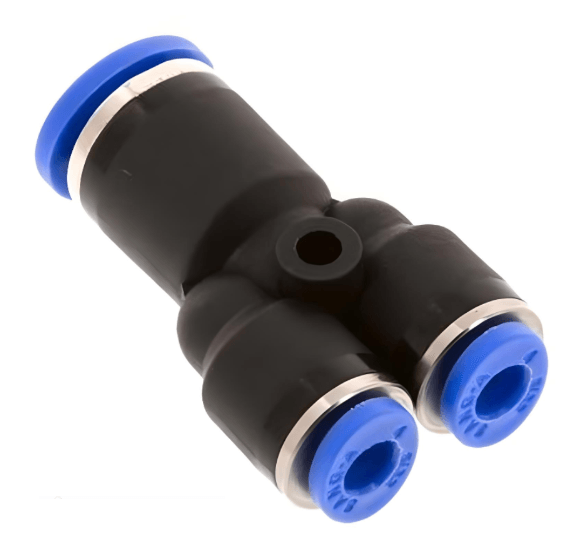

Product Details : Push to Connect Y Union Reducer 12mm x 10mm Tube OD
- Part No: P23.12.10
- Product Category: Push to Connect
- Format: Standard
- Style: Wye Union
- Number Of Exits: 2
- Type: Tube Fitting
- O-Ring: No O-Ring
- Material(s): Polymer
- Fluid Type: Air (no other gases or liquids)
- Connection 1: Push to Connect 12mm
- Connection 2: Push to Connect 10mm
- øD1: 12mm
- øD2: 10mm
- øP1: 16.3mm
- øP2: 19.7mm
- B: 50.9mm
- C1: 19.4mm
- C2: 22.4mm
- F: 18mm
- øJ: 17mm
- ød: 4.2mm
- X1: 16mm
- Y1: 18.5mm
- X2: 19.5mm
- Y2: 22.5mm
- Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
- Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
- Temperature Range: 32-176°F / 0-80°C
- Applicable Tube Material: Polyurethane and Nylon
For any information about products, please contact us.
*Photos for reference purposes only.
