Q1-1-15/16 Split Taper Bushing, 1-15/16" Bore

• Split Taper Bushing Drawing PDF

Q1-1-15/16 Split Taper Bushing, 1-15/16" Bore

Details & Specifications

• Part No: QQ1193
• PLI Bushing No.: Q1
• Bore: 1.938"
• Dimensions L: 2.5"
• Dimensions U: 0.531"
• Dimensions T: 1.969"
• Dimensions D Large End: 2.875"
• Dimensions D Small End: 2.765"
• Dimensions H: 4.125"
• Dimensions V: 3.375"
• Dimensions W: 0.5"
• Dimensions X: 1.75"
• Dimensions Y: 0.219"
• Dimensions R: 0.219"
• Dimensions S: 0.281"
• Capscrews NO.: 3
• Capscrews SIZE (Inch): 5/16 x 1-1/4
• Average Weight Lbs.: 3,5

All bushings are either Steel, or Ductile Iron

For any information about products, please contact us.

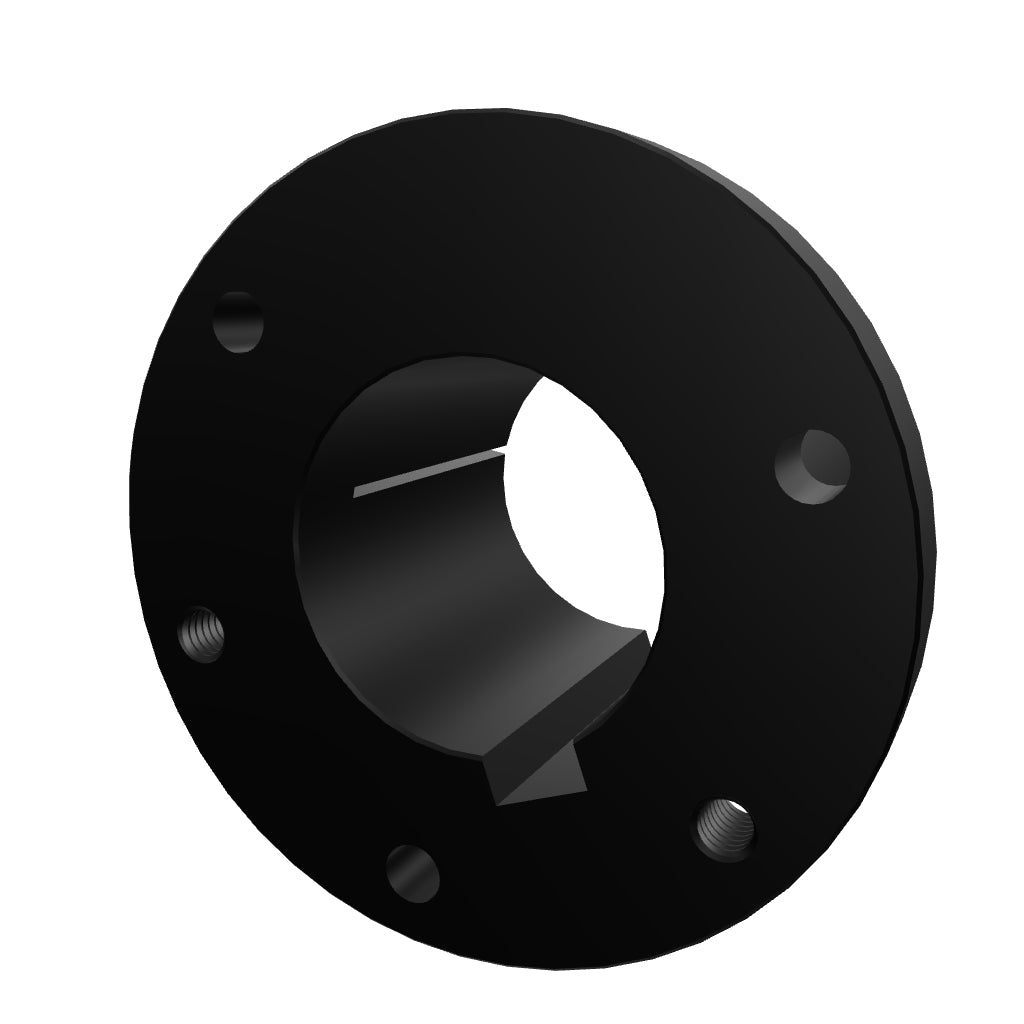

*Photos for reference purposes only.
