Description
Engineered for demanding power transmission, our Split-Taper bushings provide superior holding power and true-concentric shaft locking under severe operating conditions. The double-split barrel contracts uniformly around the shaft as cap screws draw the bushing into the mating hub, while an integrated barrel key provides positive mechanical drive to eliminate slippage. Featuring a solid flanged collar with built-in jack-screw holes, they ensure fast, damage-free removal during maintenance cycles. Fabricated with precision-machined keyways, these rugged steel bushings deliver dependable stability and shock-load resistance for industrial conveyors, agricultural machinery, and heavy processing drives.
• Split Taper Bushing Drawing PDF

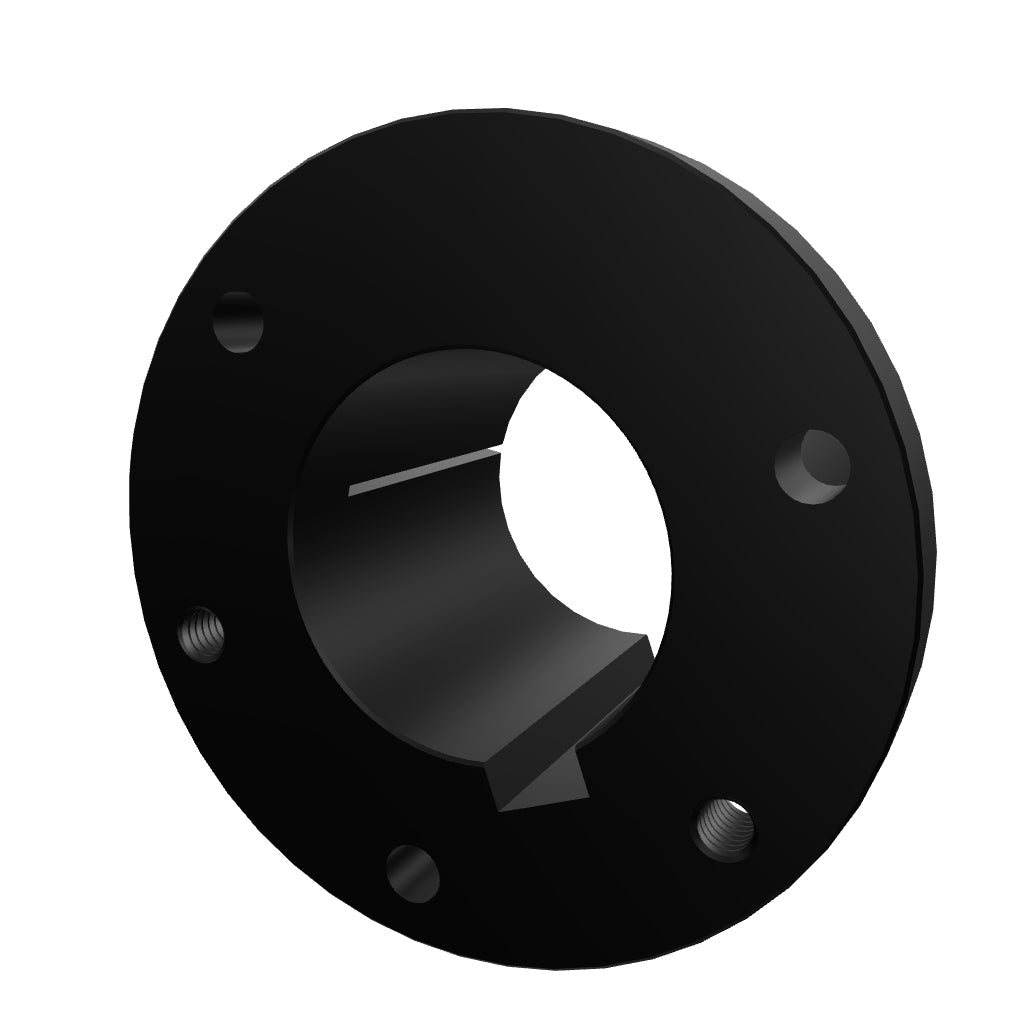

Q1-2 Split Taper Bushing, 2" Bore
Details & Specifications
- Part No: QQ1200
- PLI Bushing No.: Q1
- Bore: 2"
- Dimensions L: 2.5"
- Dimensions U: 0.531"
- Dimensions T: 1.969"
- Dimensions D Large End: 2.875"
- Dimensions D Small End: 2.765"
- Dimensions H: 4.125"
- Dimensions V: 3.375"
- Dimensions W: 0.5"
- Dimensions X: 1.75"
- Dimensions Y: 0.219"
- Dimensions R: 0.219"
- Dimensions S: 0.281"
- Capscrews NO.: 3
- Capscrews SIZE (Inch): 5/16 x 1-1/4
- Average Weight Lbs.: 3,5
All bushings are either Steel, or Ductile Iron
For any information about products, please contact us.
*Photos for reference purposes only.
