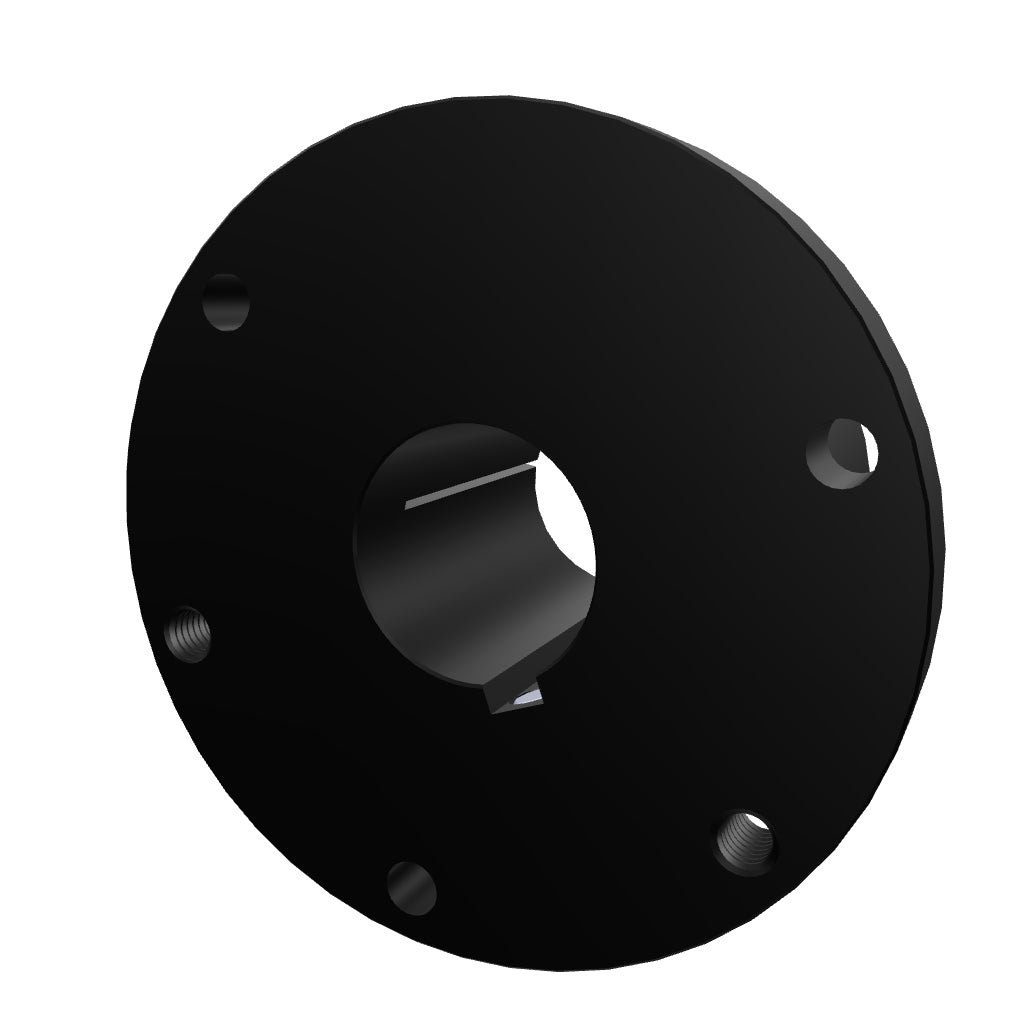

R1-1-5/8 Split Taper Bushing, 1-5/8" Bore

• Split Taper Bushing Drawing PDF

R1-1-5/8 Split Taper Bushing, 1-5/8" Bore

Details & Specifications

• Part No: QR1162
• PLI Bushing No.: R1
• Bore: 1.625"
• Dimensions L: 2.875"
• Dimensions U: 0.625"
• Dimensions T: 2.25"
• Dimensions D Large End: 4"
• Dimensions D Small End: 3.875"
• Dimensions H: 5.375"
• Dimensions V: 4.625"
• Dimensions W: 0.75"
• Dimensions X: 2"
• Dimensions Y: 0.25"
• Dimensions R: 0.25"
• Dimensions S: 0.281"
• Capscrews NO.: 3
• Capscrews SIZE (Inch): 3/8 x 1-3/4
• Average Weight Lbs.: 7,5

All bushings are either Steel, or Ductile Iron

For any information about products, please contact us.

*Photos for reference purposes only.
