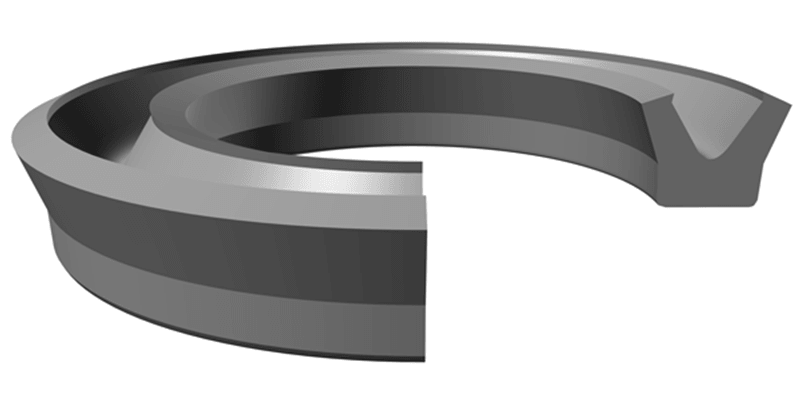

Rod/Piston U-Seal (8400) 13.000" x 14.000" x 0.500" - Nitrile

Product Details : Rod/Piston U-Seal (8400) 13.000" x 14.000" x 0.500" - Nitrile

• Part No: 841613000/4180
• Product Category: Symmetrical Seals
• Product Type: Rod/Piston U-Seal
• Profile: 8400
• Material(s): Nitrile
• Material Code: NBR
• Durometer: 80A
• Temperature Range: -40°F to +250°F (-40°C to +121°C)
• Pressure Range:
  •Hydraulic: 1250 PSI (86 Bar)
  •Pneumatic: 250 PSI (17 Bar)
• Surface Speed:
  •Hydraulic: < 1.6 ft/s (0.5 m/s)
  •Pneumatic: < 3.3 ft/s (1 m/s)
• System Of Measurement: Inch
• Dimensions: 13.000" x 14.000" x 0.500"
• Nominal I.D. (d): 13.000"
• Nominal O.D. (D): 14.000"
• Nominal Height (H): 0.500"
• Nominal Cross Section (S): 0.500"
• Details:
  •8400-style U-Cups are symmetrical lip seals for use in either rod or piston sealing applications
  •The thin flexible lip design reacts to low pressure and provides a smooth, steady movement with less break away force required because of the inherit low friction

For any information about products, please contact us.

*Photos for reference purposes only.
