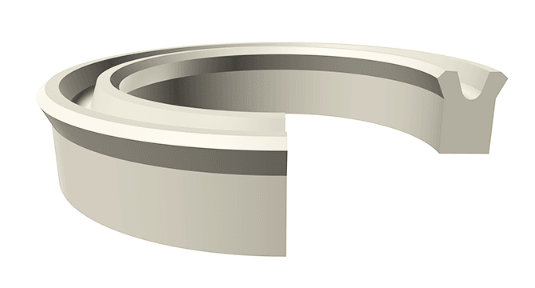

Rod/Piston U-Seal (US) 2.000" x 2.500" x 0.375" - Polyurethane

Product Details : Rod/Piston U-Seal (US) 2.000" x 2.500" x 0.375" - Polyurethane

• Part No: US25002000-375/9250
• Product Category: Symmetrical Seals
• Product Type: Rod/Piston U-Seal
• Profile: US
• Material(s): Polyurethane
• Material Code: AU
• Durometer: 92A
• Temperature Range: -40°F to +230°F (-40°C to +110°C)
• Pressure Range: ≤ 6000 PSI (≤ 414 Bar)
• Surface Speed: < 1.6 ft/s (0.5 m/s)
• System Of Measurement: Inch
• Dimensions: 2.000" x 2.500" x 0.375"
• Nominal I.D. (d): 2.000"
• Nominal O.D. (D): 2.500"
• Nominal Height (H): 0.375"
• Nominal Cross Section (S): 0.250"
• Details:
  •US-style is a U-Cup type single-acting seal
  •Can be used separately for single acting cylinder designs or in back-to-back usage in separate grooves for double-acting cylinders

For any information about products, please contact us.

*Photos for reference purposes only.
