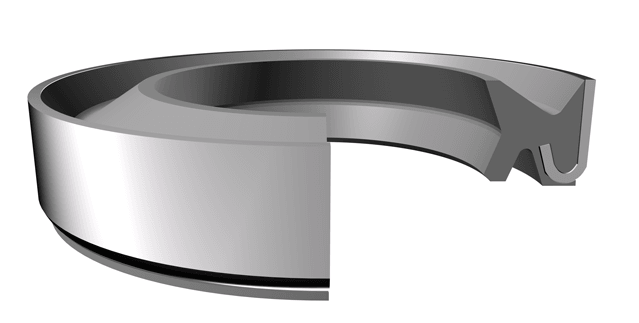

Product Details : Rod Wiper (J/DL) 5.000" x 6.000" x 0.550" - Polyurethane/Steel
-
Part No: J50006000550DL/9250
-
Product Category: Rod Wipers
-
Product Type: Rod Wiper
-
Profile: J/DL
-
Material(s): Polyurethane/Steel
-
Material Code: AU/STEEL
-
Temperature Range: -40°F to +230°F (-40°C to +110°C)
-
Surface Speed: < 1.6 ft/s (0.5 m/s)
-
System Of Measurement: Inch
-
Rod Diameter: 5.000"
-
Dimensions: 5.000" x 6.000" x 0.550"
-
Nominal I.D. (d): 5.000"
-
Nominal O.D. (D): 6.000"
-
Nominal Height (h): 0.550"
-
Nominal Cross Section: 0.500"
-
Details:
•J/DL-style rod wipers are a high performance wiper used in the toughest applications.
•Wiping edge removes the dirt and grime from the rod keeping the system clean
•Secondary sealing edge prevents residual oil film from escaping, helping the system achieve zero leakage performance
