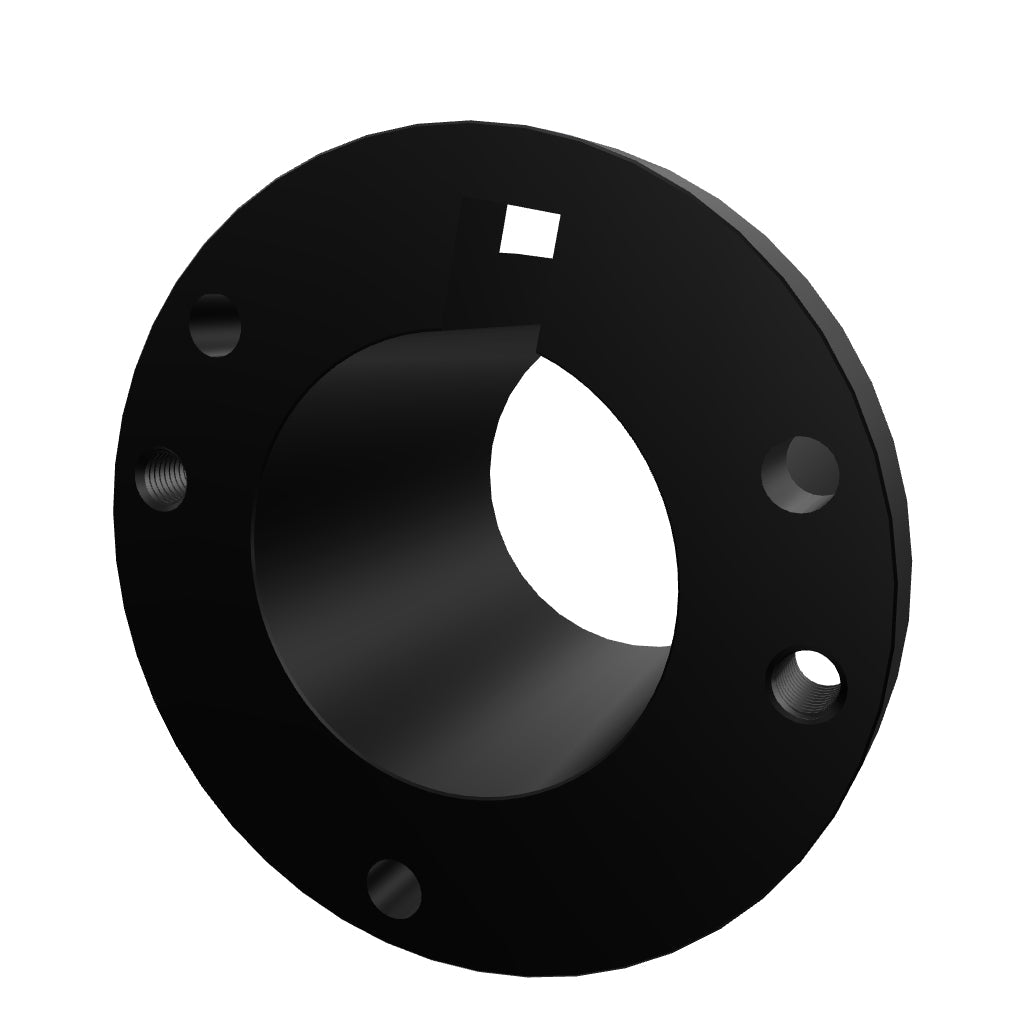

S1-3-1/2 Split Taper Bushing, 3-1/2" Bore

Forces IncSKU: QS1350
Price:
$190.48 CAD
Stock:
In stock

Description

S1-3-1/2 Split Taper Bushing, 3-1/2" Bore

Details & Specifications
  • Part No: QS1350
  • PLI Bushing No.: S1
  • Bore: 3.5"
  • Dimensions L: 4.375"
  • Dimensions U: 0.75"
  • Dimensions T: 3.625"
  • Dimensions D Large End: 4.625"
  • Dimensions D Small End: 4.418"
  • Dimensions H: 6.375"
  • Dimensions V: 5.375"
  • Dimensions W: 0.75"
  • Dimensions X: 3.833"
  • Dimensions Y: 0.313"
  • Dimensions R: 0.313"
  • Dimensions S: 0.375"
  • Capscrews NO.: 3
  • Capscrews SIZE (Inch): 1/2 x 2-1/4
  • Average Weight Lbs.: 13,5




All bushings are either Steel, or Ductile Iron

For any information about products, please contact us.

*Photos for reference purposes only.
