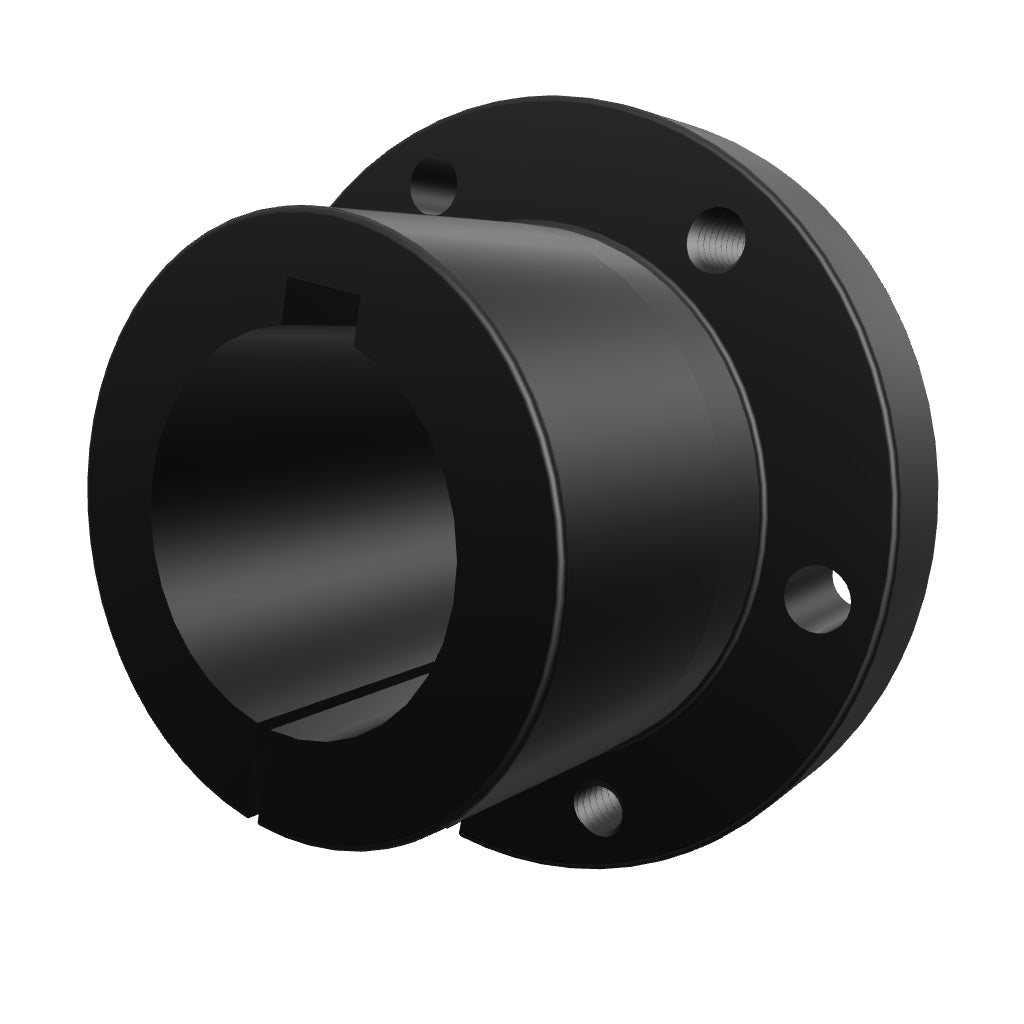

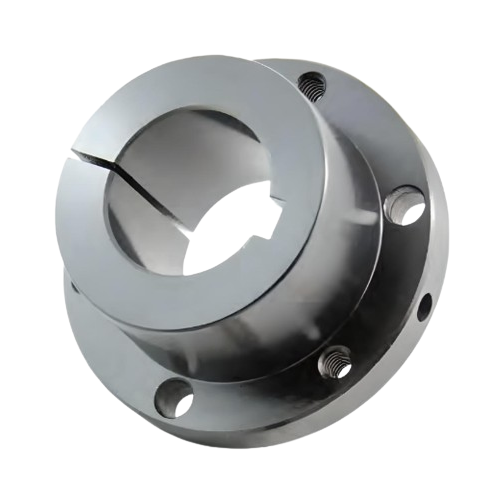

SD-1-3/8 QD Bushing, 1-3/8" Bore
Details & Specifications
-
Part No: QSD137
-
PLI Bushing No.: SD
-
Bore: 1.375"
-
Dimensions D: 3.188"
-
Dimensions L: 1.813"
-
Dimensions A: 1.250"
-
Dimensions B: 2.187"
-
Dimensions C: 0.260"
-
Dimensions E: 0.938"
-
Dimensions F: 0.5"
-
Capscrews Size: 0.25
-
Capscrews Bolt Circle: 2.688
-
Average Weight Lbs.: 1
All Bushings shown above except "JA" have a setscrew over the keyway.
For any information about products, please contact us.
*Photos for reference purposes only.
