Description
SF-1-3/4 QD Bushing, 1-3/4" Bore

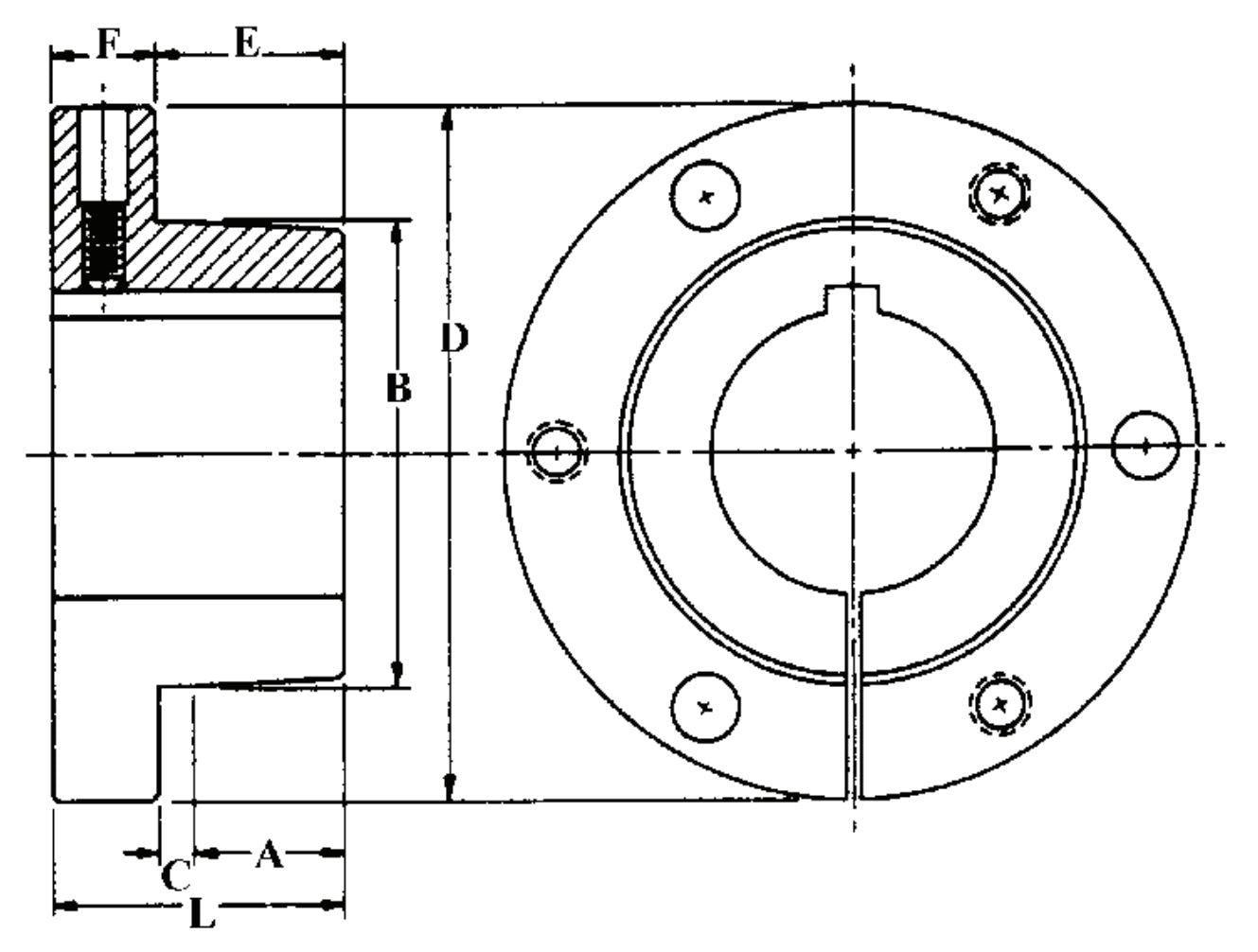

Details & Specifications
- Part No: QSF175
- PLI Bushing No.: SF
- Bore: 1.75"
- Dimensions D: 4.625"
- Dimensions L: 2.063"
- Dimensions A: 1.25"
- Dimensions B: 3.125"
- Dimensions C: 0.25"
- Dimensions E: 1.5"
- Dimensions F: 0.563"
- Capscrews Size: 0.313
- Capscrews Bolt Circle: 3.875
- Average Weight Lbs.: 3
All Bushings shown above except "JA" have a setscrew over the keyway.
For any information about products, please contact us.
*Photos for reference purposes only.
