SF-2 QD Bushing, 2" Bore
Details & Specifications
-
Part No: QSF200
-
PLI Bushing No.: SF
-
Bore: 2"
-

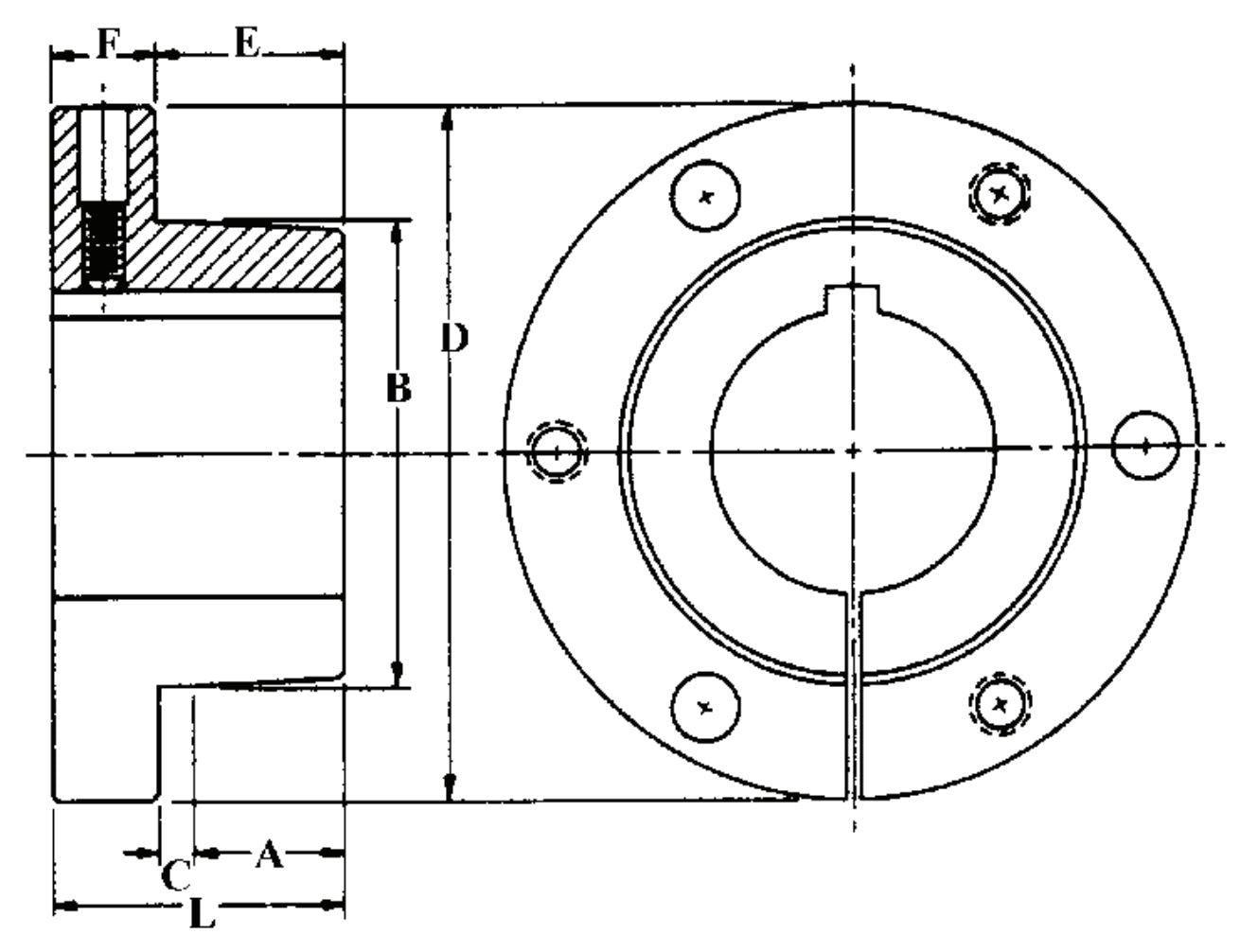

Dimensions D: 4.625"
-
Dimensions L: 2.063"
-
Dimensions A: 1.25"
-
Dimensions B: 3.125"
-
Dimensions C: 0.25"
-
Dimensions E: 1.5"
-
Dimensions F: 0.563"
-
Capscrews Size: 0.313
-
Capscrews Bolt Circle: 3.875
-
Average Weight Lbs.: 3
All Bushings shown above except "JA" have a setscrew over the keyway.
For any information about products, please contact us.

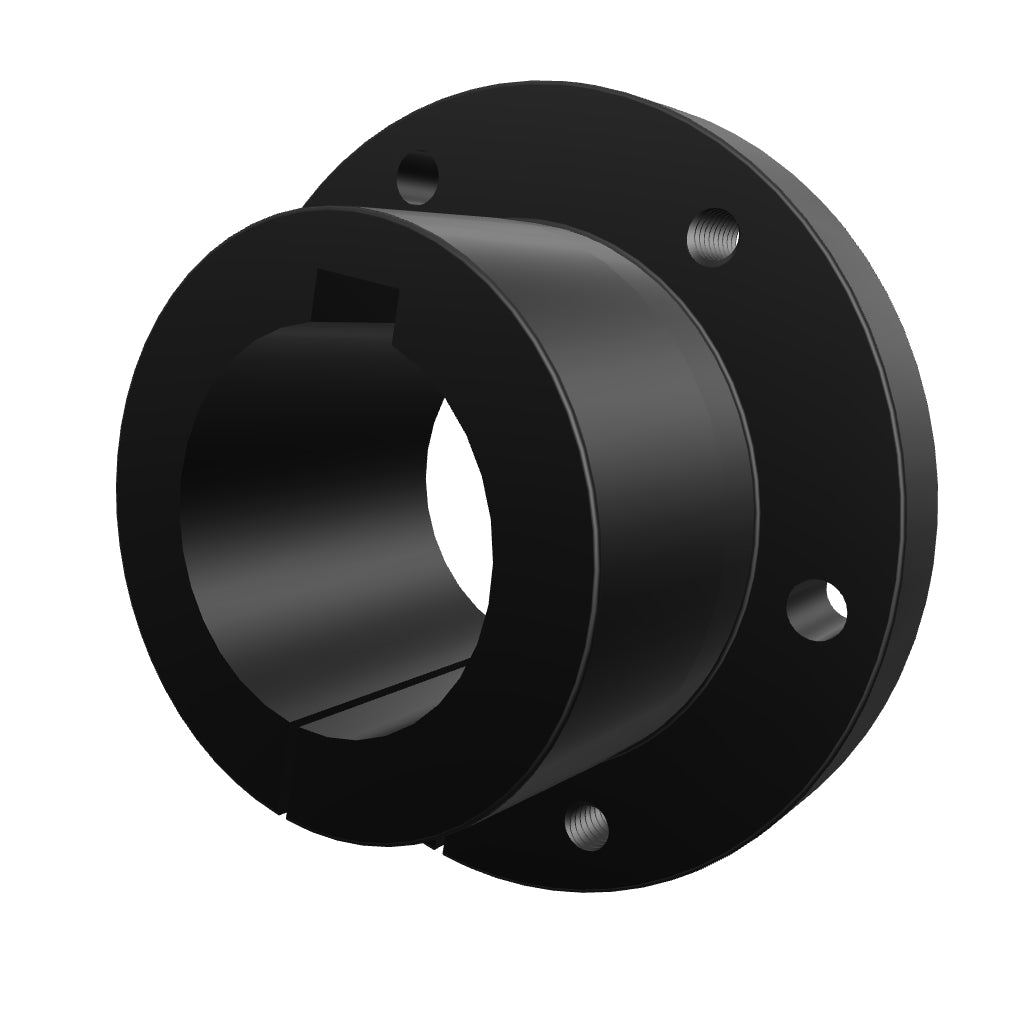

*Photos for reference purposes only.
