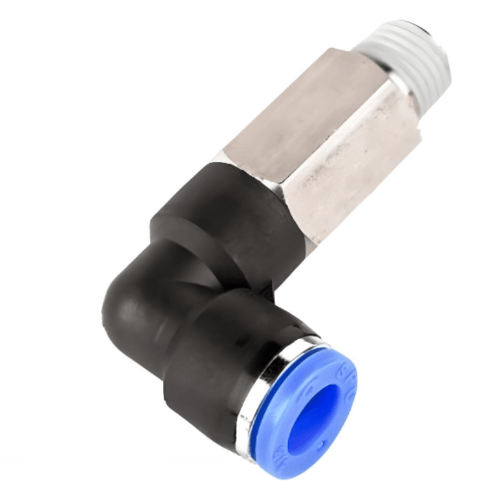

Product Details : Union Long Elbow Fitting 1/2" Tube x 3/8" BSPT (R) Male
-
Part No: P4L.1/2.3/8
-
Product Category: Push to Connect
-
Format: Standard
-
Style: Elbow Union
-
Number Of Exits: 1
-
Type: Male - Extended
-
O-Ring: No O-Ring
-
Material(s): Polymer
-
Fluid Type: Air (no other gases or liquids)
-
Connection 1: Push to Connect 1/2"
-
Connection 2: 3/8" BSPT (R)
-
øD: 1/2"
-
R: NPT3/8"
-
øP: 21mm
-
A: 12mm
-
B: 60.5mm
-
C: 22.5mm
-
E: 24.3mm
-
H: 21mm
-
X: 21mm
-
Y: 23mm
-
Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
-
Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
-
Temperature Range: 32-176°F / 0-80°C
-
Applicable Tube Material: Polyurethane and Nylon
For any information about products, please contact us.
*Photos for reference purposes only.
