Description

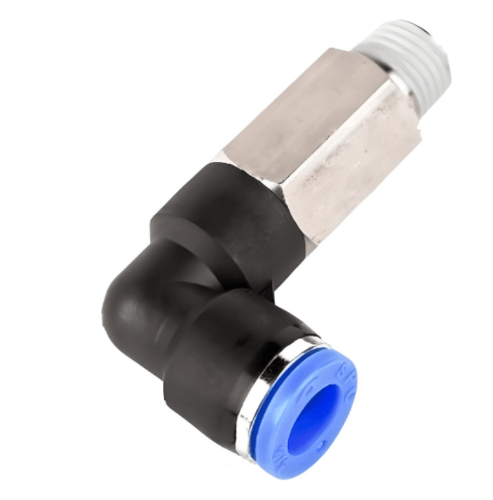

Product Details : Union Long Elbow Fitting 4mm Tube x M5 Male
- Part No: P4L.04.M5
- Product Category: Push to Connect
- Format: Standard
- Style: Elbow Union
- Number Of Exits: 1
- Type: Male - Extended
- O-Ring: No O-Ring
- Material(s): Polymer
- Fluid Type: Air (no other gases or liquids)
- Connection 1: Push to Connect 4mm
- Connection 2: M5
- øD: 4mm
- R: M5
- øP: 9mm
- A: 4mm
- B: 27.1mm
- C: 14.5mm
- E: 17.1mm
- H: 9mm
- X: 8.6mm
- Y: 10.8mm
- Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
- Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
- Temperature Range: 32-176°F / 0-80°C
- Applicable Tube Material: Polyurethane and Nylon
For any information about products, please contact us.
*Photos for reference purposes only.
