Description

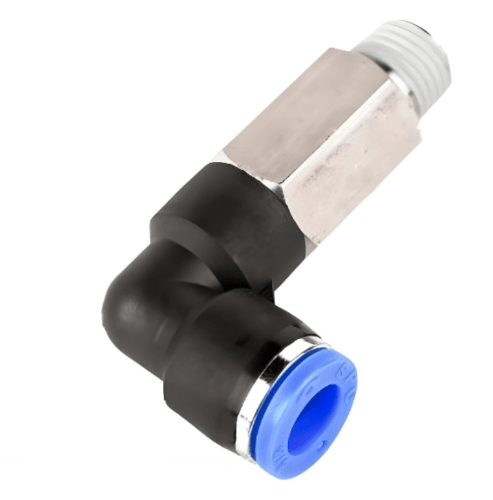

Product Details : Union Long Elbow Fitting 8mm Tube x 1/8" BSPT (R) Male
- Part No: P4L.08.1/8
- Product Category: Push to Connect
- Format: Standard
- Style: Elbow Union
- Number Of Exits: 1
- Type: Male - Extended
- O-Ring: No O-Ring
- Material(s): Polymer
- Fluid Type: Air (no other gases or liquids)
- Connection 1: Push to Connect 8mm
- Connection 2: 1/8" BSPT (R)
- øD: 8mm
- R: R1/8"
- øP: 13.6mm
- A: 8mm
- B: 35.3mm
- C: 17.8mm
- E: 23.6mm
- H: 10mm
- X: 13mm
- Y: 15mm
- Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
- Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
- Temperature Range: 32-176°F / 0-80°C
- Applicable Tube Material: Polyurethane and Nylon
For any information about products, please contact us.
*Photos for reference purposes only.
