• Dimension Print Available Here

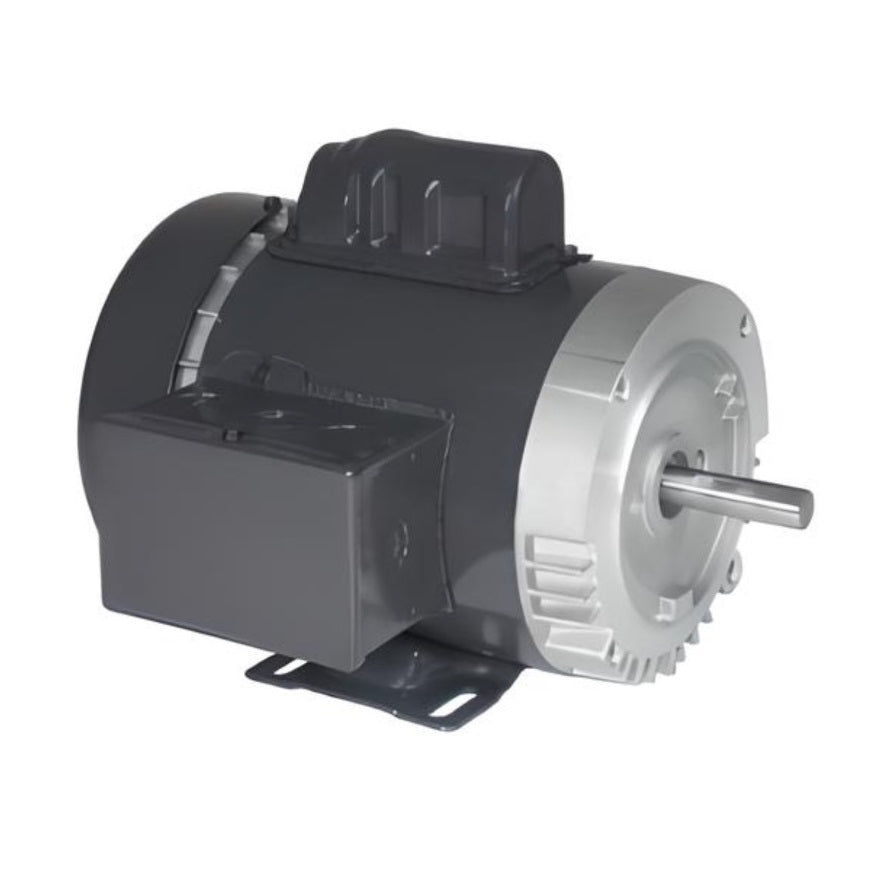

Product Details : US Motors FD12CM2PC | Farm Duty Motor 1/2HP, 1800RPM, 115/230V, Frame 56C, TEFC
- Part No: FD12CM2PC
- Product Type: Farm Duty Motor
- Categories: Agri Duty High Torque
- Brand: US Motors - Nidec
- Frame: 56C
- Enclosure: TEFC
- Horsepower (HP): 1/2
- Poles: 4
- RPM: 1800
- Voltage: 115/230V
- Phase: 1
- Number Of Speeds: 1
- Frequency (Hz): 60
- Amps: 9.0/4.5
-
Features:
• Class F Insulation (140-210 Frame)
• 40°C Ambient, Continuous Duty
• Reversible Rotation
• F1 Assembly
• Steel Frames & Steel Welded Based (140-210 Frame), Steel Fan Cover & Conduit Box
• Manual Reset Thermal Overload Protector
• Low Temperature Grease
• Non-Regreasable Double Shielded Bearings
• Shaft Slinger (140-210 Frame)
• Capacitor Start-Capacitor Run (3-10 HP)
For any information about products, please contact us.
*Photos for reference purposes only.
