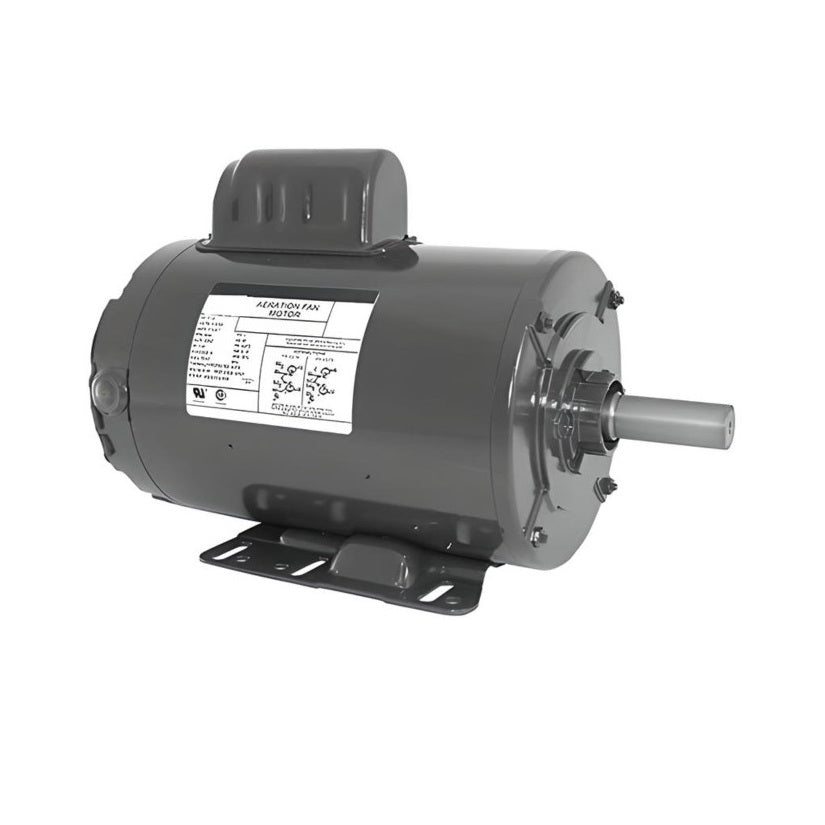

US Motors FD1CA1PZ | Farm Duty Motor 1HP, 3600RPM, 115/230V, Frame 56Z, TEAO

• Dimension Print Available Here

Product Details : US Motors FD1CA1PZ | Farm Duty Motor 1HP, 3600RPM, 115/230V, Frame 56Z, TEAO

• Part No: FD1CA1PZ
• Product Type: Farm Duty Motor
• Categories: Crop Dryer
• Brand: US Motors - Nidec
• Frame: 56Z
• Enclosure: TEAO
• Horsepower (HP): 1
• Poles: 2
• RPM: 3600
• Voltage: 115/230V
• Phase: 1
• Number Of Speeds: 1
• Frequency (Hz): 60
• Amps: 12.4/6.2
• Features:
  • Totally Enclosed Air Over
  • Class B Insulation on 56 Frame
  • Class F Insulation on 140 Frame
  • Keyed Shaft Drilled on Center 1 Deep & Tapped 1/4 UNC
  • 56Z Frame Motors have 5/8Dia. X 2-1/4 Long Shaft
  • F1 Assembly Position
