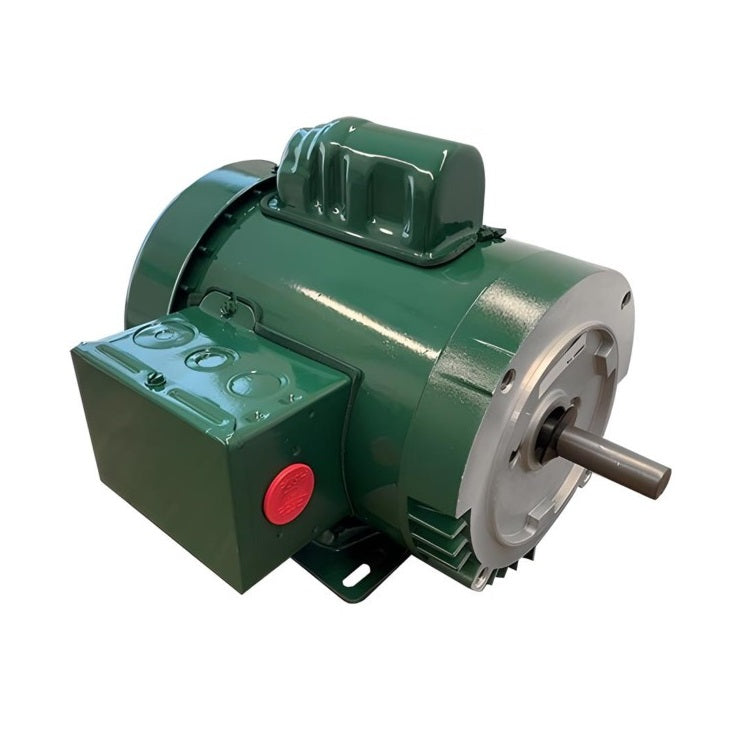

Product Details : US Motors FD32CM2PH | Farm Duty Motor 1.5HP, 1800RPM, 115/230V, Frame 56H, TEFC
- Part No: FD32CM2PH
- Product Type: Farm Duty Motor
- Categories: Agri Duty High Torque
- Brand: US Motors - Nidec
- Frame: 56H
- Enclosure: TEFC
- Horsepower (HP): 1.5
- Poles: 4
- RPM: 1800
- Voltage: 115/230V
- Phase: 1
- Number Of Speeds: 1
- Frequency (Hz): 60
- Amps: 16.2/8.1
-
Features:
• Class F Insulation (140-210 Frame)
• 40°C Ambient, Continuous Duty
• Reversible Rotation
• F1 Assembly
• Steel Frames & Steel Welded Based (140-210 Frame), Steel Fan Cover & Conduit Box
• Manual Reset Thermal Overload Protector
• Low Temperature Grease
• Non-Regreasable Double Shielded Bearings
• Shaft Slinger (140-210 Frame)
• Capacitor Start-Capacitor Run (3-10 HP)
