Description
Engineered for high-torque and severe shock-load applications, our XTB bushings deliver a rigid mechanical lock between sprockets and shafts. The shallow taper and split barrel generate immense clamping force as bolts are torqued, eliminating backlash and slippage under reversing loads. An integrated flange with built-in jack-screw holes ensures fast, damage-free removal during maintenance. Precision-machined keyways ensure positive power transmission and protect against high-load fatigue in conveyor head pulleys, bucket elevators, and bulk material handling drives.

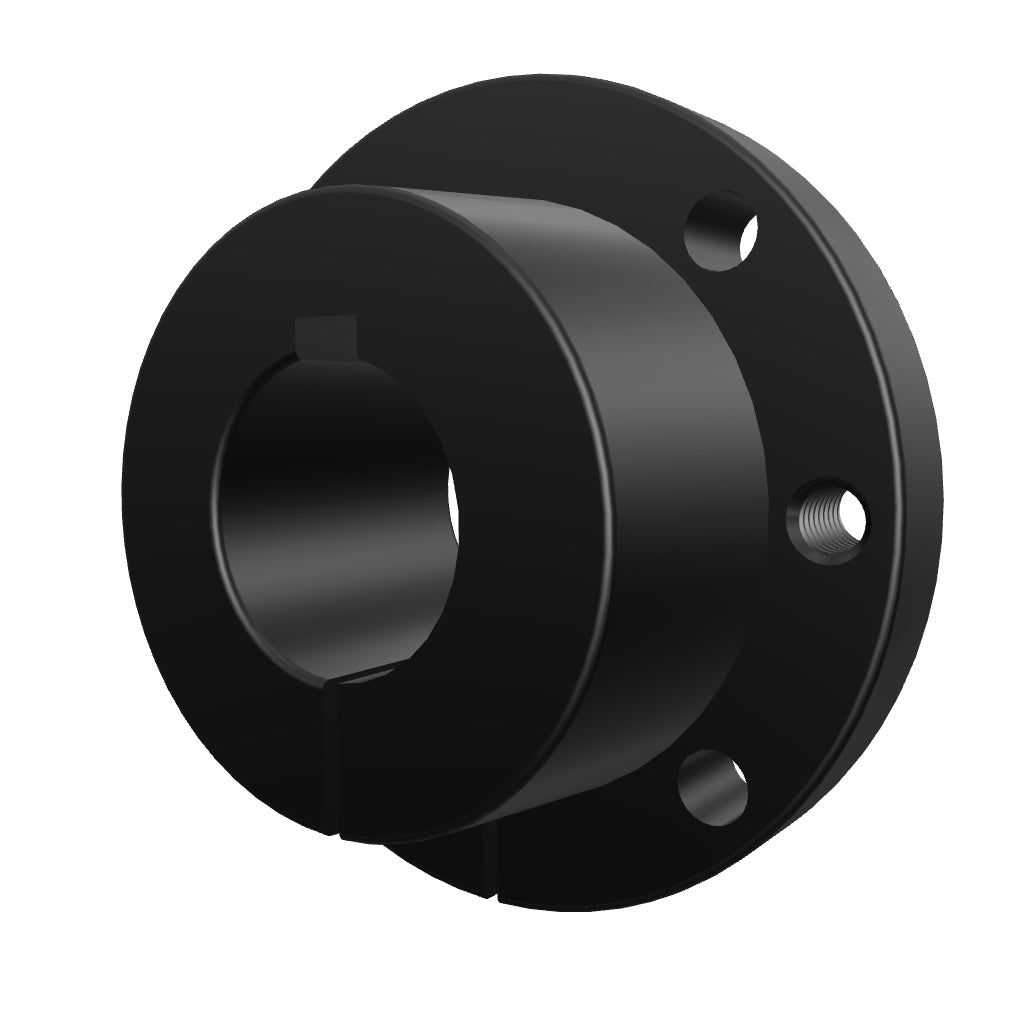

XTB25 Bushing 1-1/2" Finished Bore
Details & Specifications
- Part No: QXTB25150
- PLI Bushing No.: XTB25
- Bore: 1.5"
- Length Thru Bore L: 1.875"
- Flange Width B: 0.625"
- Flange O.D.: 4.438"
- Bolt Height D: 0.25"
- Bolt Circles BC: 3.75"
- Cap Screws No.: 4
- Cap Screw Size (Inch): 3/8 X 1 3/4
- Wt. Lbs: 2,6
- Wrench Torque (Ft./Lbs): 29
For any information about products, please contact us.
*Photos for reference purposes only.
