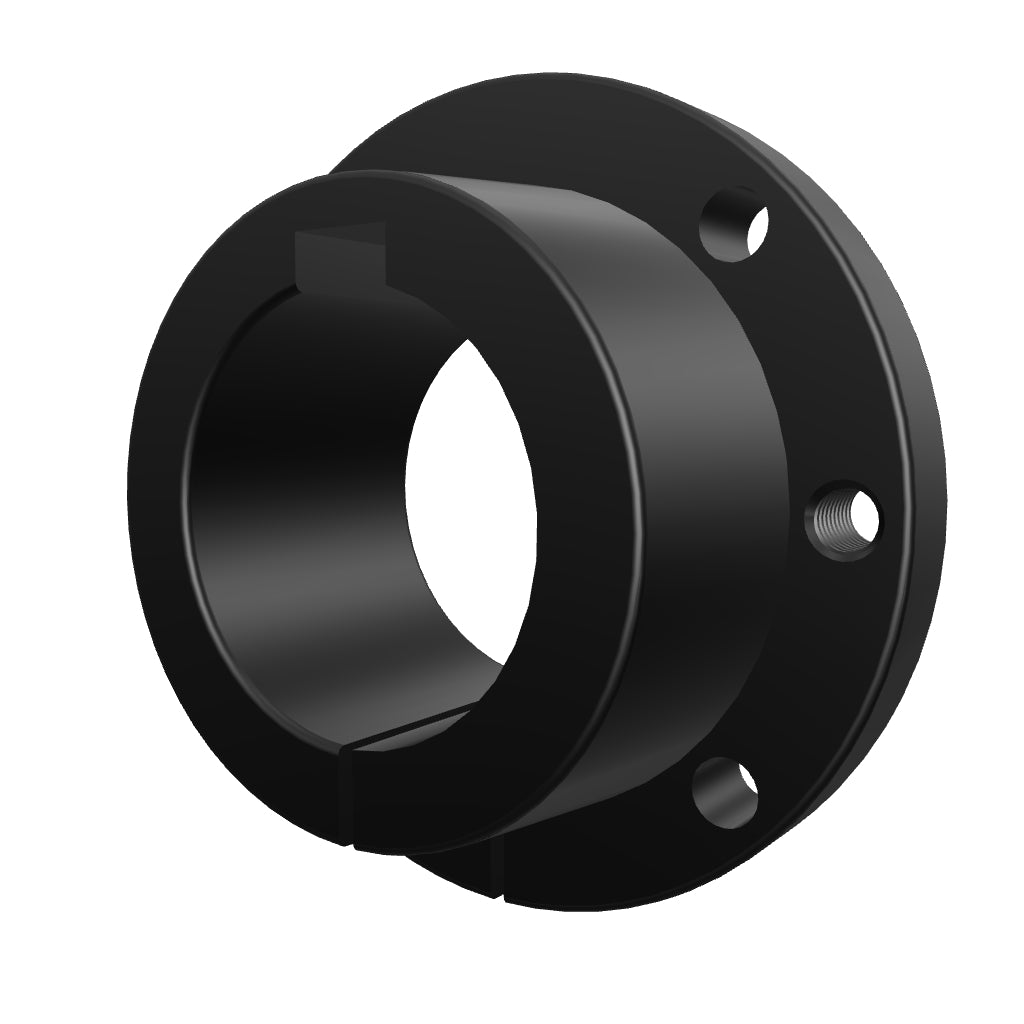

XTB40 Bushing 3-7/16" Finished Bore
Details & Specifications
-
Part No: QXTB40343
-
PLI Bushing No.: XTB40
-
Bore: 3.438"
-
Length Thru Bore L: 2.813"
-
Flange Width B: 0.875"
-
Flange O.D.: 7.125"
-
Bolt Height D: 0.375"
-
Bolt Circles BC: 6.125"
-
Cap Screws No.: 4
-
Cap Screw Size (Inch): 9/16 X 2
-
Wt. Lbs: 10,5
-
Wrench Torque (Ft./Lbs): 100
For any information about products, please contact us.
*Photos for reference purposes only.
